RPS Solar Pumps - Well

Regular price $2,899.00 $2,169.00 Sale

SALE + FREE SHIPPING!*

America's #1 Most Trusted Solar-Powered Water Pump
RPS Solar Pump Kits are for people that believe in getting the job done themselves, and getting it done right. Our goal is to arm you with the equipment and knowledge to take control of your water and save a fistful of money doing it. Our Pledges to You

The now famous Narrow pump is a miraculous 2.01" in diameter and the first of it's kind. Yes, it can sneak in next to an existing pump/drop-pipe in a 6" well casing to act as a backup redundant pump, or if a pump is stuck down in the well. It fits 2.5" and 3" casings that are so common in old windmills. Finally a solution for windmill wells that could never take a submersible pump before!!

Like our 3" pumps, the RPS 200N, 400N, 800N feature a helical rotor. These pumps are designed to operate on solar power alone and feature a brushless DC motor to keep temperature down and efficiency up in a tight well casing. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options.

Find out more about all the ways you can use a submersible pump on our install diagram page or take a look at a RPS 400N customer story.



Gallons to Expect from RPS 2" Pumps
* Based on a 6 hour solar pumping day

RPS 200N
Gallons Per Day (GPM)
RPS 400N
Gallons Per Day (GPM)
RPS 800N
Gallons Per Day (GPM)
No Head 2160 (6 GPM) Under 75' of head, recommend 200N Under 150' of head, recommend 200N or 400N
25 2016 (5.6 GPM)
Recommended if batteries are used (optional)
50 1800 (5 GPM)
75 1476 (4.1 GPM) 2376 (6.6 GPM)
100 1152 (3.2 GPM) 2160 (6 GPM)
125 756 (2.1 GPM) 1872 (5.2 GPM)
150 1620 (4.5 GPM) 2808 (7.8 GPM)
175 1332 (3.7 GPM) 2772 (7.7 GPM)
200 1008 (2.8 GPM) 2520 (7 GPM)
225 540 (1.5 GPM) 2160 (6 GPM)
250 1800 (5 GPM)
275 1440 (4 GPM)
300 1116 (3.1 GPM)
325 756 (2.1 GPM)



2 Inch Solar Well Pump


Need a different model?
3 inch:
RPS 200, RPS 400, RPS 600, RPS 800, RPS 400V, RPS 800V,
4 inch:
Pro V Series, Pro D Series or use the popular online
Sizing Wizard.


Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back!  Start Sizing Now »

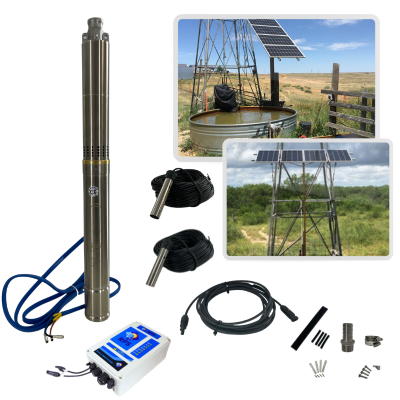

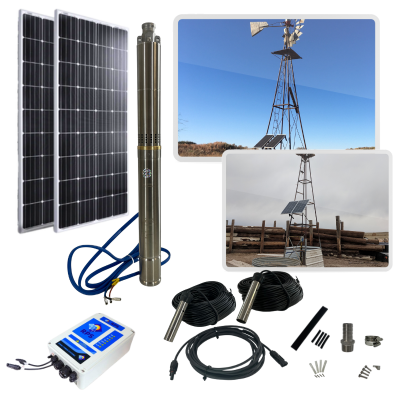

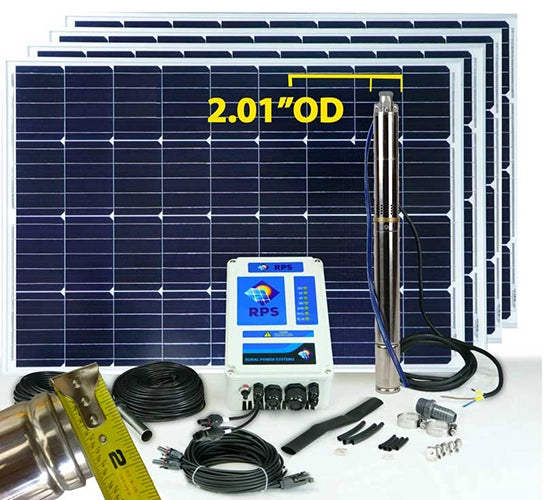

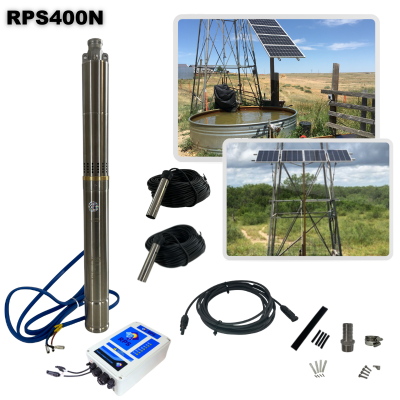

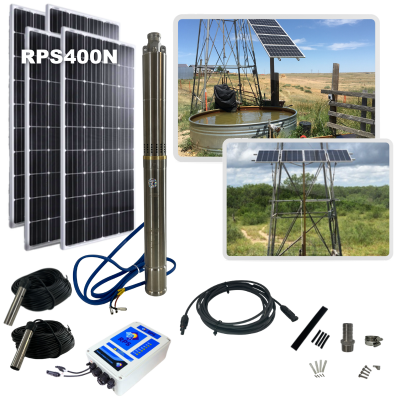

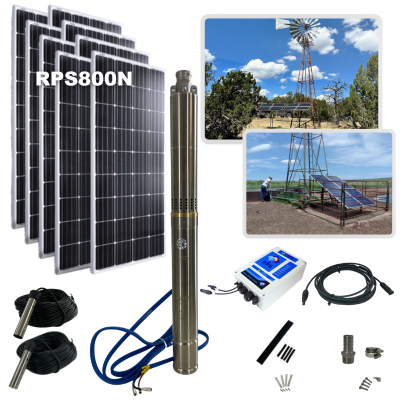

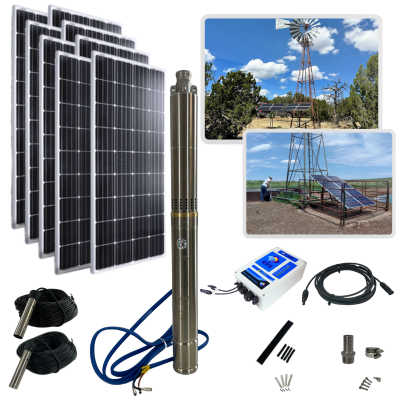

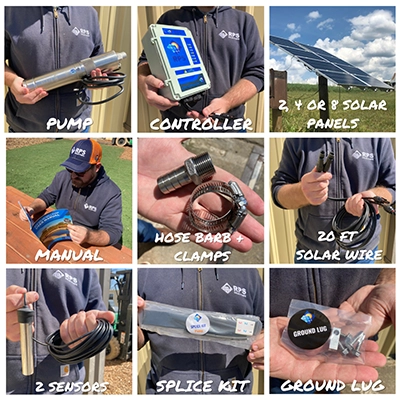

RPS 200N / 400N / 800N Kit contains:

  • 2x to 8x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels (Dimensions are roughly 3.75' long, 1.6' wide and a little more than 1" thick)

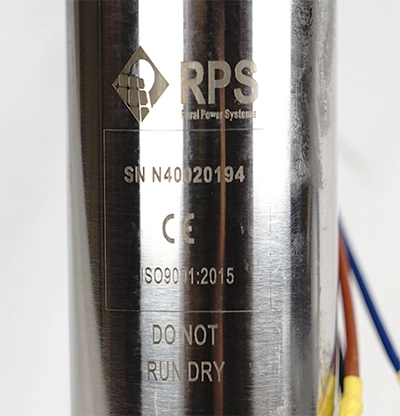

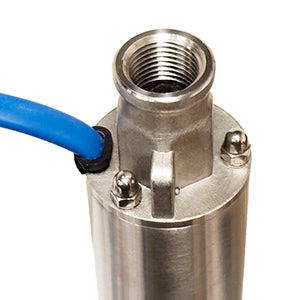

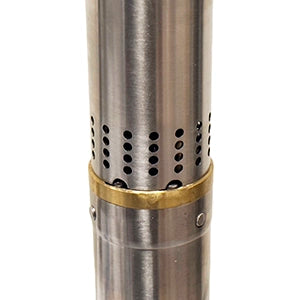

  • RPS Helical Rotor Pump (2.01" OD) with DC Brushless Permanent Magnet Motor
  • RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
  • 1/2" MNPT thread to 3/4" hose barb and hose clamps for use with 3/4" black poly pipe

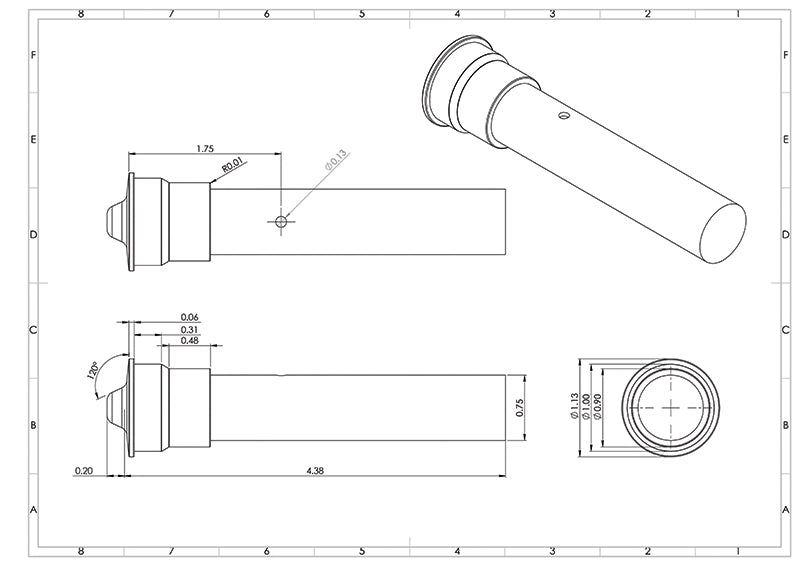

  • 1x Low-water Well Level sensor with 100ft wire attached
  • 1x Tank Shut-off sensor with 100ft wire attached
  • Solar Panel cable connectors
  • Waterproof heatshrink wire splice kit with pre-crimped pump wires
  • Detailed full-color solar pump guide with step-by-step install instructions
  • Access to RPS video archives of installation tips & product walkthroughs
  • 30 Day Money-Back & 100% Water Assurance Guarantee
  • Lifetime Rotor Warranty which is only wear part and Field Serviceable
  • 2 Year Comprehensive Warranty
  • Phone / Email / Text Support from Friendly USA based RPS Engineers

Solar panel mounting is not included in the standard RPS 400 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.

No batteries required! Batteries or a generator can be used later as backup with the proper hardware, but most customers find they get much more water than they expect with solar alone! That sun up there is amazing!

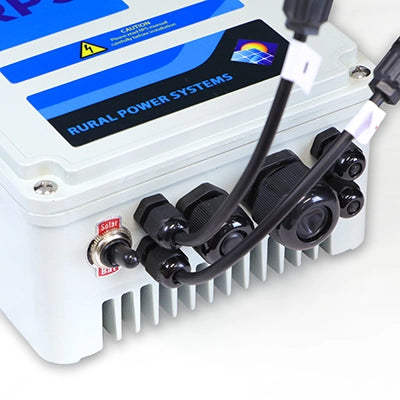

Features of RPS Controllers
Multiple Sensor Inputs
Tank High & Well Low sensors
Variable Frequency Control with MPPT
Cycling Protection Timer
Exterior Shut-off Switch
Features of RPS Pumps
Slow Start/Stop for Longevity
Brushless Motor Technology
Serviceable in the Field
Stainless Steel Body
Lifetime Rotor Warranty

   Solar Panels: 47”x 20”x 1.18”, 100W / 12V, ~15lbs

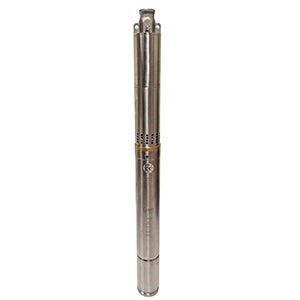

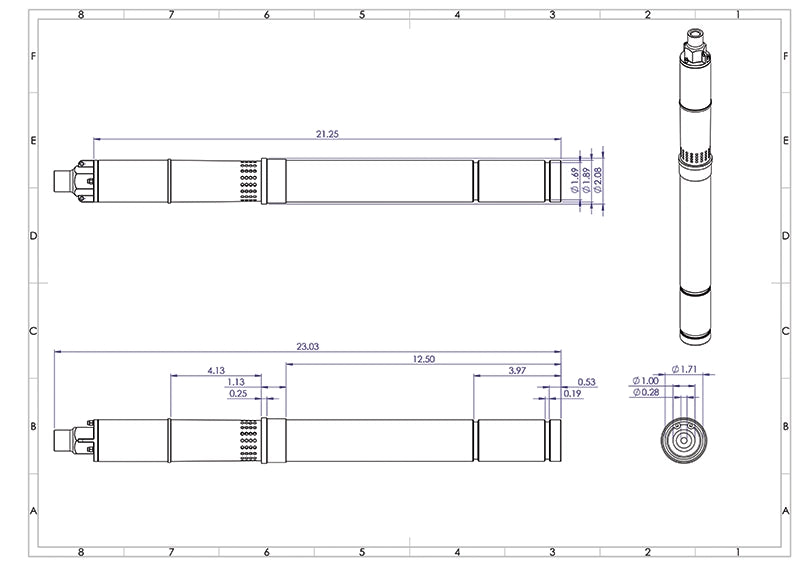

Well Pump: 2.01" OD, 1/2" Outlet, 24" Long, ~12lbs

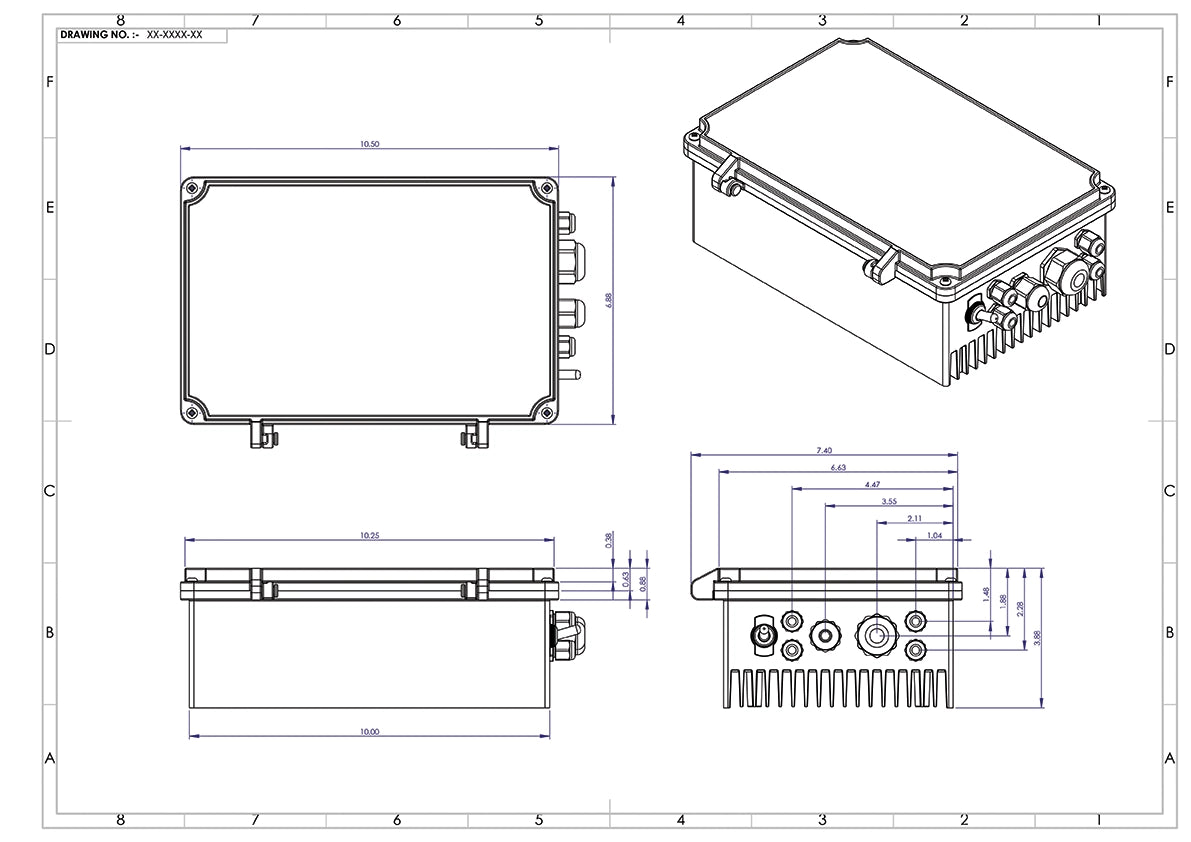

Controller: 13” x 8” x 6”, ~10lbs








We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS. Note from RPS co-owner Mike
