Regular price $3,049.00 $1,999.00 Sale

Overview



BIG SUMMER BLOWOUT SALE! - And FREE SHIPPING when you ADD TO CART. Ends JUNE 30TH at MIDNIGHT!

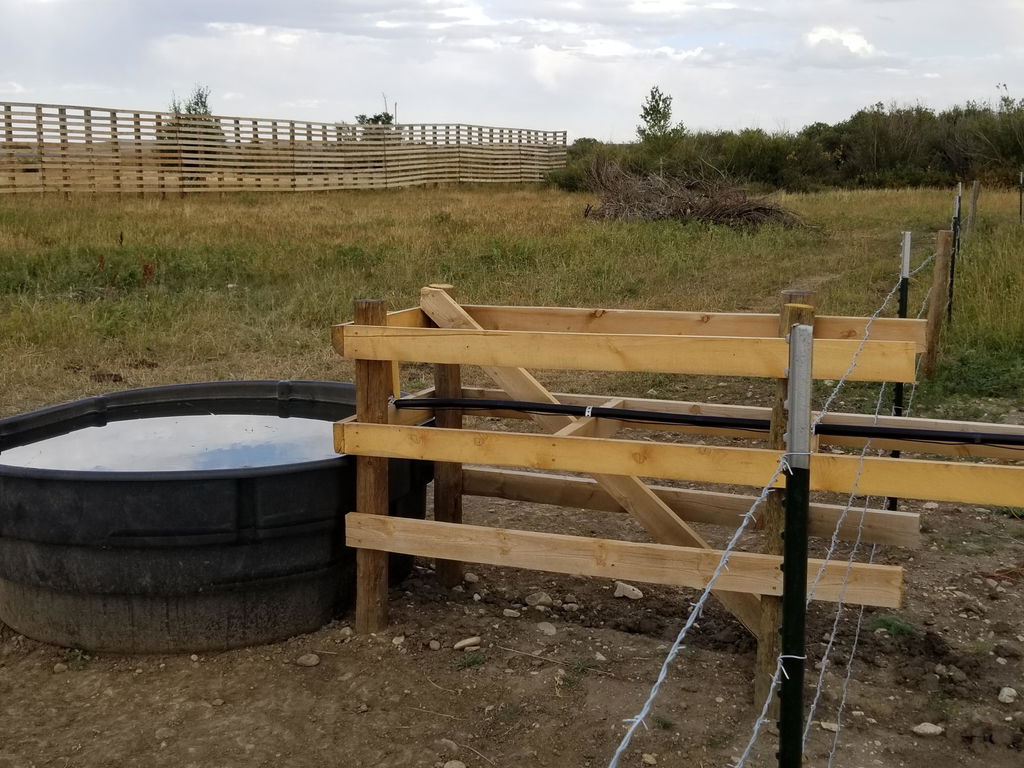

Requested by customers for over two years, in 2018 we were proud to introduce our new centrifugal pump! When a helical screw pump can't get you enough volume and the Pro Series is a little too much pump or money, the RPS 400V or 800V is for you. Using the same great controller as our famous helical pumps, we have created a higher volume, lower head option. A centrifugal pump works best for sandy or sedimentary water sources, the pumping mechanism impellers are highly resistant to wear. The RPS 400V uses less panels but the same pump as the RPS 800V. Adding more panels increases head ability and volume, up to 16GPM at low heads! Perfect for keeping large stock tanks or ponds full in the summer.


Featuring permanent magnet DC brushless motors means you'll never replace another carbon brush! The entire pump housing is stainless steel to comply with all local code and pump installation requirements.

Kit Contents

RPS400V Kit contains:

  • 4x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels (Dimensions are roughly 3.2' long, 1.7' wide and a little more than 1" thick)
  • RPS Centrifugal Pump with DC Brushless Permanent Magnet Motor
  • RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
  • 1" hose barb and hose clamps for use with black poly pipe
  • 1x Low-water Well Level sensor
  • 1x Tank Shut-off sensor
  • Solar Panel cable connectors
  • Waterproof heatshrink wire splice kit with pre-crimped pump wires
  • Detailed full-color Solar Pump Guide for step-by-step planning & install
  • Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
  • Access to RPS video archives of installation tips & product walkthroughs
  • 30 Day Money-Back & 100% Water Assurance Guarantee
  • 2 Year Comprehensive Warranty
  • Phone / Email / Text Support from Friendly USA based RPS Engineers

Solar panel mounting is not included in the standard RPS 400 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.

Downloads:
RPS 400V SPEC SHEET.PDF 📄
100W SOLAR PANEL SPEC SHEET.PDF 📄



Optional Add-ons and Upgrades:


 Pump Kit Only
+Add to Cart
Pump Kit + Turnkey Kit
+Add to Cart
Pump Kit + 4P Mount Kit
+Add to Cart
RPS Solar Pump
& RPS Solar Controller
Solar Panels
100W Aluminum Frame
Solar Panel Mounting
Adjustable Tilt Pole Mount
Controller Mounting
2” or 4” Post Straps & Plates
Controller Mounting
Tabs & Lags for Plywood
Solar Wire
Two 20’ Lengths with MC4s
Steel Post + Cement
2-3/8” OD or 4.5” OD Pipe
Customer Supplied Customer Supplied Customer Supplied
12-3 Pump Wire
6’ + butt crimps on pump

100’ or 200’ or 300’

Pump Wire Splice Kit
With Wire Labels
Low Water
Sensor + Wire

100’

100’ or 200’ or 300’
Tank Full
Sensor + Wire

100’

100’


100’

Sensor Wire
Splice Kit
Safety Rope
Yellow No-Decay Twisted Poly

100’ or 200’ or 300’
Black Poly Pipe
160psi Rated

Choose ¾” or 1”
Pump-to-Poly Pipe Barbed
Coupling + Hose Clamps
Well Seal SS Plumbing
All Stainless with barb & tee
Standard
Well Seal

Choose 4”, 5”, 6” or 8”
Grounding Lug
for controller
Bare copper wire roll
& Grounding Clamp
Grounding Rod
4’ or 8’ if required by code
Customer Supplied Customer Supplied Customer Supplied
Teflon Tape
For SS plumbing
Electrical tape
For bundling pipe/rope/wire
Digital Multimeter
For testing voltages if needed
If Requested
Our Award Winning RPS Support Team if you need us!

Pump Kit Only
+Add to Cart
Pump Kit + Turnkey Kit
+Add to Cart
Pump Kit + 4P Mount Kit
+Add to Cart



Sizing

Gallons to Expect from RPS 400V

* GPD Based on a 6 hour solar pumping day

400V Gallons
Per Day

400V
GPM

800V Gallons
Per Day
800V
GPM
0 ft 5076 14.1 5760 16.0 (wow!)
25 ft 3672 10.2 5364 14.9
50 ft 3240 9.0 5184 14.4
75 ft 2592 7.2 4896 13.6
100 ft 4680 13.0
125 ft 3636 10.1

Need a different model? RPS 200RPS 400RPS 600RPS 800RPS 400VRPS 800VPro V SeriesPro D Series or

not sure what you need? Use the popular online Sizing Wizard


Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back!  Start Sizing Now »




Customer Reviews

Based on 43 reviews
98%
(42)
2%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mark W. - Texas
Up and Running Great!

Running great and I've got plenty of water in my tank!

B
Brent J.
Install was simple and easy

Install was simple and easy. So far so good with our first unit from you

K
Keith J
Pumping Water

Up & Pumping!

B
Brad K
Awesome system!

Pumping 12 gpm out of a 20 ft.deep well!

J
John G
Very Impressed

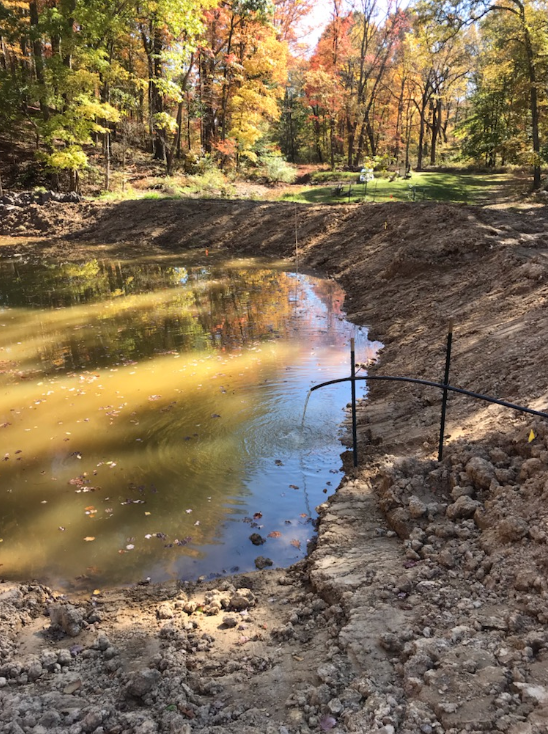

I did tons of research on the internet and was always impressed by the customer service and "product quality" remarks when people referenced your company. I can now attest, the customer service, and follow-up, is incredible and the pump is working flawlessly. I'm using the 400v water pump to pull water out of a creek to my pond 120 feet away. The head is approx. 35 feet. This was purchased to keep our quarter acre pond topped off and it does a superb job. Not one thing, other than the mounting pole, grounding rod and some concrete, was needed, everything else was included...and I mean, everything else. Installation was simple, straight forward and went off without a single hitch. It's worked PERFECT from day one So far, I couldn't be more satisfied. Thanks for a great product and a great support team
