RPS 200 Solar Well Pump Kit

RPS Solar Pumps

Regular price ~~$2,149.00~~ $1,699.00 Sale

System

Quantity

SALE + FREE SHIPPING!*

America's #1 Most Trusted Solar-Powered Water Pump
RPS Solar Pump Kits are for people that believe in getting the job done themselves, and getting it done right. Our goal is to arm you with the equipment and knowledge to take control of your water and save a fistful of money doing it. Our Pledges to You

Put the Sun to Work on your land with the famous RPS 200. Over the years has been installed by more farmers and ranchers than any other system we offer, scattered over all 50 states. Two solar panels offer an attractive blend of performance and price giving you up to 1800 gallons a day, and over 500 gallons at 150ft. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options. Spec Sheet.

Find out more about all the ways you can use a submersible pump on our install diagram page or take a look at our RPS 200 customer story.

Gallons to Expect from RPS 200
* Based on a 6 hour solar pumping day

	Gallons Per Day	GPM
No head	1836	5.1
25 ft	1692	4.7
50 ft	1584	4.4
75 ft	1188	3.3
100 ft	1116	3.1
125 ft	756	2.1
150 ft	540	1.5

Need a different model? RPS 200, RPS 400, RPS 600, RPS 800, RPS 400V, RPS 800V, Pro V Series, Pro D Series or use the popular online Sizing Wizard.

Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back! Start Sizing Now »

RPS 200 Kit contains:

2x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels
(Dimensions are roughly 3.75' long, 1.6' wide and a little more than 1" thick)
RPS Helical Rotor Pump (2.9" OD) with DC Brushless Permanent Magnet Motor
RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
3/4" hose barb and hose clamps for use with black poly pipe (or ask for 1" if you prefer)
1x Low-water Well Level sensor with 100ft wire attached
1x Tank Shut-off sensor with 100ft wire attached
Solar Panel cable connectors
Waterproof heatshrink wire splice kit with pre-crimped pump wires
Detailed full-color solar pump guide with step-by-step install instructions
Access to RPS video archives of installation tips & product walkthroughs
30 Day Money-Back & 100% Water Assurance Guarantee
Lifetime Rotor Warranty which is only wear part and Field Serviceable
2 Year Comprehensive Warranty
Phone / Email / Text Support from Friendly USA based RPS Engineers

Solar panel mounting is not included in the standard RPS 200 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.

Features of RPS Controllers
Multiple Sensor Inputs
Tank High & Well Low sensors
Variable Frequency Control with MPPT
Cycling Protection Timer
Exterior Shut-off Switch

Features of RPS Pumps

Slow Start/Stop for Longevity
Brushless Motor Technology
Serviceable in the Field

Stainless Steel Body

Lifetime Rotor Warranty

No batteries required! Batteries or a generator can be used later as backup with the proper hardware, but most customers find they get much more water than they expect with solar alone! That sun up there is amazing!

Solar Panels: 47”x 20”x 1.18”, 100W / 12V, ~15lbs
Well Pump: 2.9" OD, 3/4" Outlet 21" Long, ~15lbs
Controller: 13” x 8” x 6”, ~10lbs

We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS. Note from RPS co-owner Mike.

Rather a Friendly voice? Our famous support team is here to help!

888-637-4493

*Note: Free shipping unfortunately only available for contiguous 48 states. Subsidized shipping available for Hawaii, Alaska, Mexico and Canada!

Rather a Friendly voice? Our famous support team is here to help!

888-637-4493

Customer Reviews

Based on 24 reviews Write a review

Everything is working good. Pumping enough for 30+ pairs. Pump is that at about 85 foot. I believe I could have a lot more water pump if needed by rotating the panels as the sun moves. It is working good for what I need at this point.
Thank you very much

It works!

This is looking down into the well. You can see one check valve to stop water from coming back down the hill from the tank and the other to let the water drain back down through the pump into the well. The latter is for freezing conditions. The pump is sitting in 14’ of water. Filled the 300 gal tank up the hill with only 10” of level loss in the well. Good recharge rate.
Somewhat cloudy day so switched to battery part way through the fill. Much faster pumping rate. Very happy with the system. Installed it and turned it on and it worked. Can’t ask for more. Great instructions.

The Installation went great

My brother in law and is son in law, who wired space shuttles( who can say that ), and my nephew did it in 100*+ weather. Was up and running that day. One week ago today. Thank you for a great product!

pumping water pretty consistently out here, thank you rps!

RPS200 Looks great!

1 2 3

NB, Florida

Great The pump arrived with all the parts about a week and a half ago! It’s running great.

From Customer

Texas They got the well going this afternoon! Thank you for all your help in making this all happen. Here's to many years of satisfied cows!

David

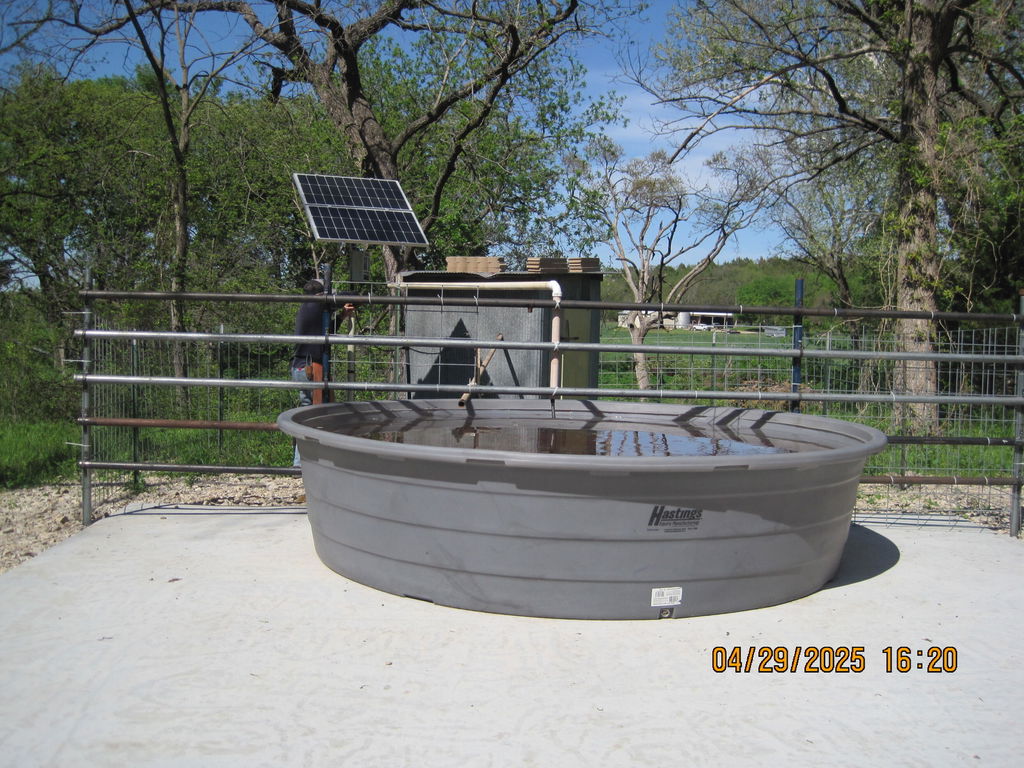

good water getting good water with my 120 foot deep old well to cattle trough

Dillon

RPS1.3-50, 12 Had an issue with my controller but it may have been user error - the guys replaced it no questions asked and I was pumping right after that

Susan

RPS1.3-50, 11 Everything went very well. Install took less than 2 hours. Was surprised how well it was pumping with heavy cloud cover. Very happy with the product and customer service. There has been a few friends checking it out to see if it will work for them. Thanks

D&L, California

RPS1.3-50, 10 friendly and competent team. USA based support on the phones which is rare these days. the pump is pumping great too. need to make it more clear that the wire and pipe does not come with the kits.. i missed that somehow

Ron

RPS1.3-50, 9 well see how it holds up. a great deal. ive been through so many of the plastic pumps. this one is all metal. happy so far.

Wayne

RPS1.3-50, 8 Installed with my son , good instructions ,painless install. Solid pump that is heavy and sturdy , working great so far. If you use poly pipe, make sure to use 2 hose clamps.

Frank S

RPS1.3-50, 4 Cows have water and are happy, so I am happy.

Jim

RPS1.3-50, 7 I own four RPS pumps. The water table varies on my properties and its been essential to have pumps that can handle different depths. The guys at RPS are great. Helpful upfront but also when I called for help installing my first kit. (its easy by the way I just had a brain fart) Thats when you can really tell a good company. Ill probably be back again later this year.

Graham

RPS1.3-50, 6 this thing is great for the cabin as we dont need too much water and the well is on the shallow size

Don

RPS1.3-50, 5 I was impressed by the quality of the system and ease at which everything can be hooked up. I still cant believe I can produce over 4 GPM! Goodbye gas generator.

John R

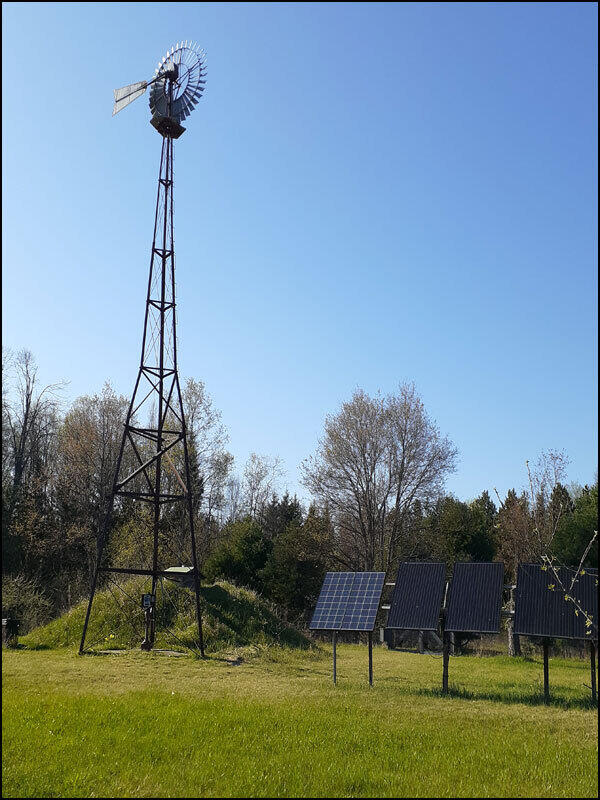

RPS1.3-50, 1 I have replaced 3 windmill pumps with these RPS systems and I dont have to worry about them no more. Been working for almost 2 years.

RPS1.3-50, 2 We like to be prepared. If SHTF and the Grid goes down I want to be able to get water. Ive got the 1.3 system stored in a Faraday cage if I need it.

James K

RPS1.3-50, 3 Easy to install and good flow
