"Time Is Money" Turnkey Kit for Quicker & Easier Installs
"Time Is Money" Turnkey Kit for Quicker & Easier Installs
"Time Is Money" Turnkey Kit for Quicker & Easier Installs

"Time Is Money" Turnkey Kit for Quicker & Easier Installs

RPS Solar Pumps

Regular price $499.00 $409.00 Sale

Short on time? In a remote area without access to a hardware store? Get everything you need to install an RPS Solar Pump right to your doorstep. US Record holder: 1hr 7min from opening boxes to pumping water. CS, Missouri

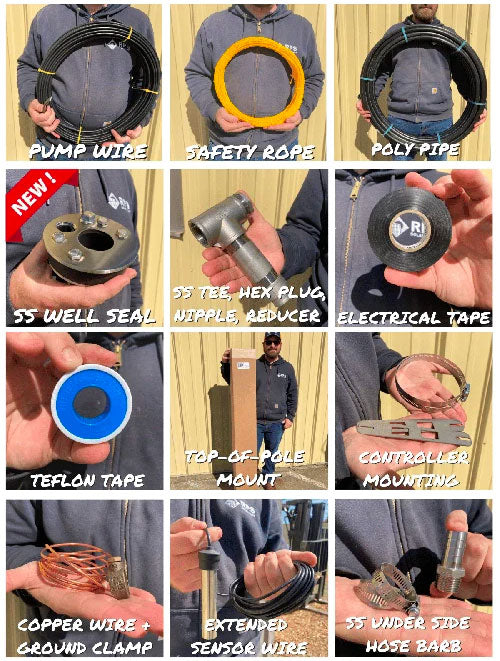

Wire
  • Pump Wire - Outer jacketed (12-3 AWG)
  • Sensor Wire (2 Strand)
  • Polypropylene rope (no decay) to attach to pump as safety line
Plumbing
  • Poly Pipe rolls 160psi (3/4" or 1" IPS)

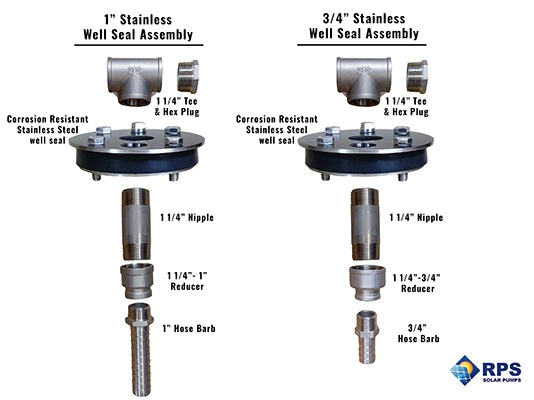

  • Well seal assembly (4", 5" 6" Steel standard) with PVC barbed insert below, threaded nipple, and threaded elbow
  • Hose clamps for the barbed couplings
  • Teflon tape
  • Electrical tape
Mounting

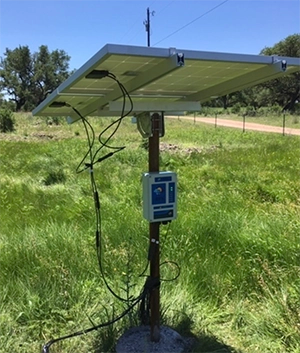

  • Adjustable Tilt Top-of-pole Mounting kit for Solar Panels (Customer to supply 2-3/8” OD or 4.5" OD schedule 40 steel pipe for mounting - RPS 200 Kit comes standard with 1x 2Panel mount on 2-3/8" OD steel post, RPS 400, 400V, 400N with 1x 4Panel mount for 4.5" OD steel pipe. RPS 800V, 800 with 1x 8Panel mount 4.5in OD steel pipes. RPS 600 can purchase the RPS 800 Turnkey kit and have extra room for 2 more panels later! Customer to supply mounting pipe.)

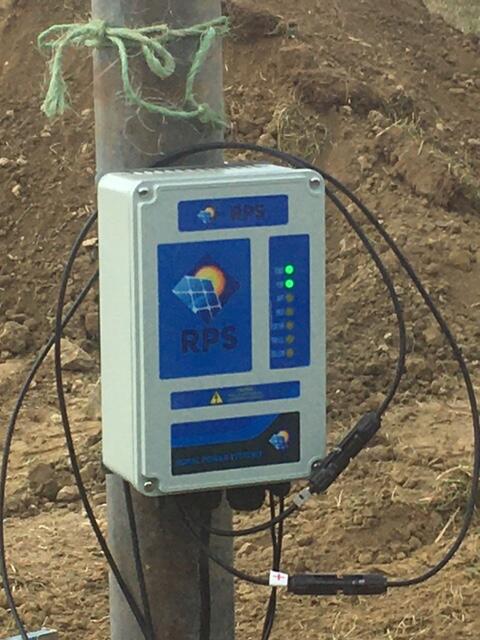

  • Simple Mounting hardware to attach Controller to post
  • Grounding wire and clamp for use with standard grounding rod
Comes in 100ft, 200ft and 300ft kits.

Standard RPS Systems vs. Turnkey Table



Tools & Equipment you’ll still need on hand for the quick install:
  • Wire stripper/crimper
  • Flat and Phillips Screwdriver
  • Lighter or heatgun for heatshrinks, heating poly pipe for tighter hose clamps
  • 2-3/8" OD steel pipe - for RPS 200 ...or 4.5" OD steel pipe - RPS 400, 400V, 400N) or 2x 4.5" OD steel pipes for RPS 800, 800V
  • Small socket set as it helps get hose clamps tighter
  • Bag(s) of cement for post holes and something to dig them!
  • 4' or 8' 5/8" Grounding rod (not vital on install day, but encouraged)
  • Simple Multimeter for testing DC voltages

Customer Reviews

Based on 1 review Write a review

Customer Reviews

Based on 8 reviews
88%
(7)
13%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Joshua Brock
Super helpful!

This kit made the process of installing out 800 Solar Well Pump Kit so much easier! Watched the videos on YouTube from RPS the day before, and when I got into the field, had everything prepped and ready to go. Great job!!

J
Josh K
Install went pretty easy

Our dog sat in the truck the whole time giving moral support. Digging the hole and setting the pipe for the panels was easier than trying to get the pump to go in the smaller diameter well pipe 20’ down. Haha. With the curve of the black water pipe it kept sitting on the edge of the inner pipe. Finally got it down!

J
Justin R
Very impressed

So I’m up and pumping, and stoked!
I’m very impressed with the RPS solar pump, instructions were easy to follow and I had the help of my plumber buddy and neighbor. I purchased the 400 from you and installed it 160 feet down, well head is at 80 feet. Then it comes out and pumps up hill another 20 feet into my tank. Naturally the first day we had the tank connected it was very cloudy and even rained a bit and still managed to pump around 900 gallons. I appreciate your help in choosing the proper size for my needs and I’ll definitely be bragging to everyone about how well my solar powered pump works! Thanks again

M
Matt E, Abilene, TX
We have water!!

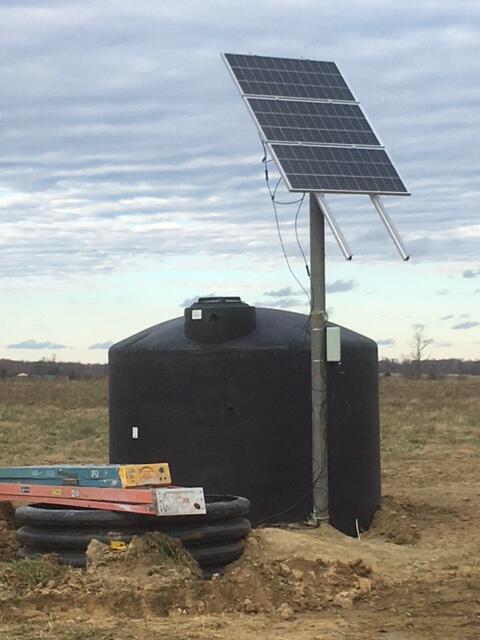

Bought 23 acres last summer, and it was raw land. However, it sits on top of an aquifer, so we wanted to get to the water ASAP. This system will supply water to a 1500 gallon storage tank, which will feed to our house down the hill. Your instruction manual was stellar. Your customer service was fantastic. I couldn’t be more pleased!
Total install took about 6 hours. I could’ve done it faster, but I’m meticulous and read and re-read the manual the whole time I was hooking it all up. Did it with the help of my 12 year old son and a neighbor (for dropping the pipe). Awesome set up. Thanks so much!
-Matt E.
Abilene, TX
RPS 400 and 200 ft Turnkey Kit

A
Andy & D, California
Perfect

Perfect. This is our second pump from your company. We are up and running and have a full tank of water. 3000 gallons. Turn key package is So easy to install. We will need 1 more system and will bring see you again. Great system.
