RPS Pro Irrigation Surface Pump
RPS Solar Pumps - ProS
Regular price
$4,799.00
$3,799.00
Sale
SALE + FREE SHIPPING ON S750 & W1000
*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.*
We confirm sizing with every order for your peace of mind and you get a fulfillment and support agent to make sure you succeed! Learn more about the DIY Success Team!
Our Pro Irrigation Pumps are high volume, mid-head, non-submersible applications where suction still may be necessary. Great for sprinklers up to 45 psi, but can also supply drip lines without over pressurizing.
Self priming suction up to 25' but the less priming, the better GPM production at lower head. The systems use best-of-the-best USA 3-Phase Pumps.
Pump from sun up to sun down or program an irrigation timer for a custom watering schedule. Cast iron construction sealed with corrosion resistant Electrocoat paint.
Customer Story
Brent Gill of the Porterville Recorder Newspaper was gifted an RPS ProS solar pump kit by his son to re-green pastureland around the house, with one catch - Brent would have to install it himself. He was so taken by the "Grown Up Erector Set", that he decided to write about it. View the full story here!
Gallons Per Day (GPD)
Head (ft) | Pro S750 | Pro S1000 | Pro S1500 | Pro S2000 | Pro S3000 |
25 | 16,560 GPD | 21,600 | 23,040 | 31,680 | 39,600 |
50 | 15,480 | 18,720 | 22,680 | 30,960 | 37,800 |
75 | 12,240 | 15,120 | 21,600 | 28,440 | 33,480 |
100 | 3,600 | 9,720 | 15,840 | 22,680 | 25,920 |
120 | 14,400 | 16,200 |
GPM at Under 5' Suction
See curve below if higher suction with foot valve required.
Head (ft) | Pro S750 | Pro S1000 | Pro S1500 | Pro S2000 | Pro S3000 |
25 | 46 GPM | 60 | 64 | 88 | 110 |
50 | 43 | 52 | 63 | 86 | 105 |
75 | 34 | 42 | 60 | 79 | 93 |
100 | 10 | 27 | 44 | 63 | 72 |
120 | 40 | 45 |
MATCHING PSI & WATER ESTIMATES TO A SOLAR PUMP
Gardeners, food foresters, homesteaders, ranchers- they’re all trying to get the best bang for their buck while also planning to expand operations in the future. You may only use drip lines now, but in the next two years plan on watering pastures with 60 PSI sprinklers. RPS recommends sizing up to the next most powerful model if you know that you’ll need a bit more power in the future. If the ProS750 fits current needs but is insufficient for future irrigation, choose a larger option to grow into like the ProS1500 or ProS2000.
The RPS Pro Irrigation systems contain:
- 1hp to 3hp Goulds Irrigation Pump (see curves above)
- 2.2 kW Rated Solar Controller (takes DC Voltage from Solar Panel array +ability to run with 3000w 220v 1 Phase Generator)
- 3 Phase 220v plug and labeled wires for quick connect to generator
- 1.5" FNPT inlet and 1.5" FNPT outlet
- 1.6kW to 3.1kW Solar Array - Mono solar panels
- Grounding Kit (copper wire, lug and tape)
- Simplified Wiring Diagrams for easy hookup
- Email support before and during installation
- 2 Year Comprehensive Warranty
Solar panel mounting is a separate cost, we have easy-to-install DIY Scalable Ground Mounting and Adjustable Top-of-Pole options.
Unlike our line of 3'' Submersible Pumps, like the RPS 200, 400, 800, the surface pump TPP or even our Gridless Sump Pump, the Pro Series is not compatible with batteries.
Copper rod for grounding is customer supplied.
Well Pump: 20" Length, 8" Width, 9" Height, ~50-70 lbs Solar Panels: 47”x 20”x 1.18”~15lbs (100W panels) 65"x 39"x1.38" ~ 40lbs (370W panels) S750: 10 x 100W S1000: 12 x 100W S1500: 6 x 370W S2000: 8 x 370W S3000: 10 x 370W |
We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS. Note from RPS co-owner Mike.
Rather a Friendly voice? Our famous support team is here to help!
888-637-4493
*Note: Free shipping unfortunately only available for contiguous 48 states. Subsidized shipping available for Hawaii, Alaska, Mexico and Canada!

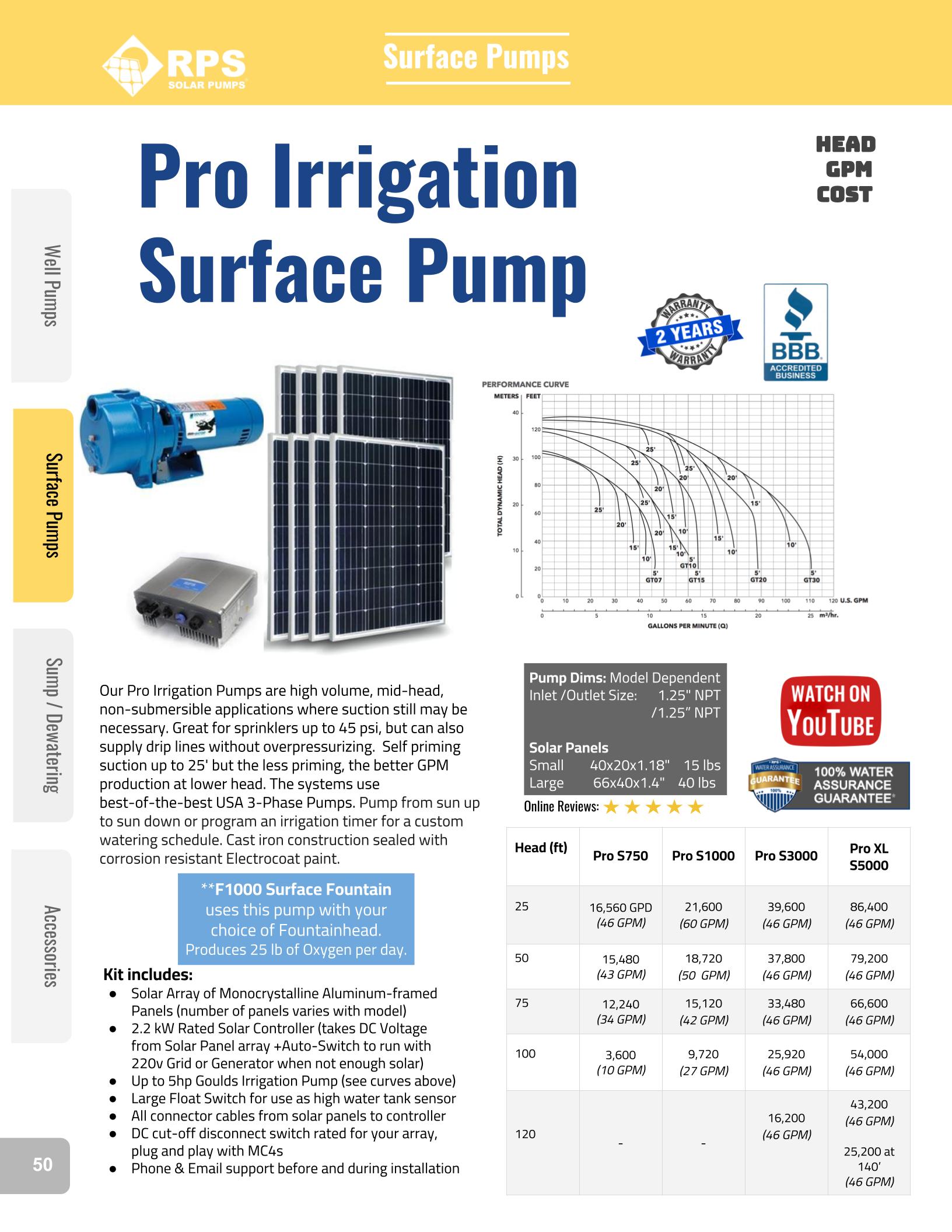

RPS Pro Irrigation Surface Pump SPEC SHEET
