Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting
Scalable Solar Panel Ground Mounting

Scalable Solar Panel Ground Mounting

RPS Solar Pumps

Regular price $459.00 Sale

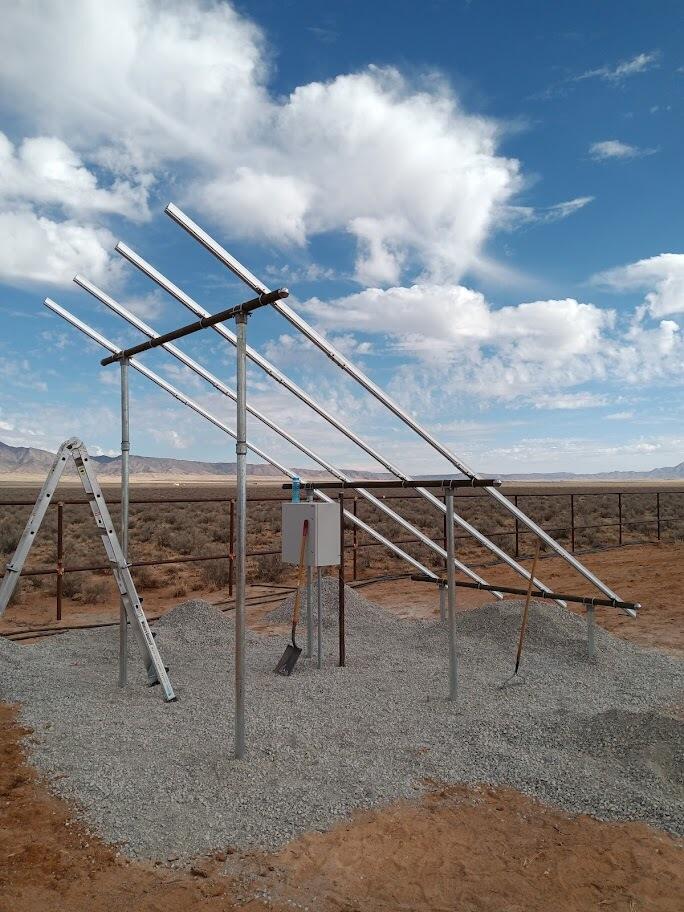

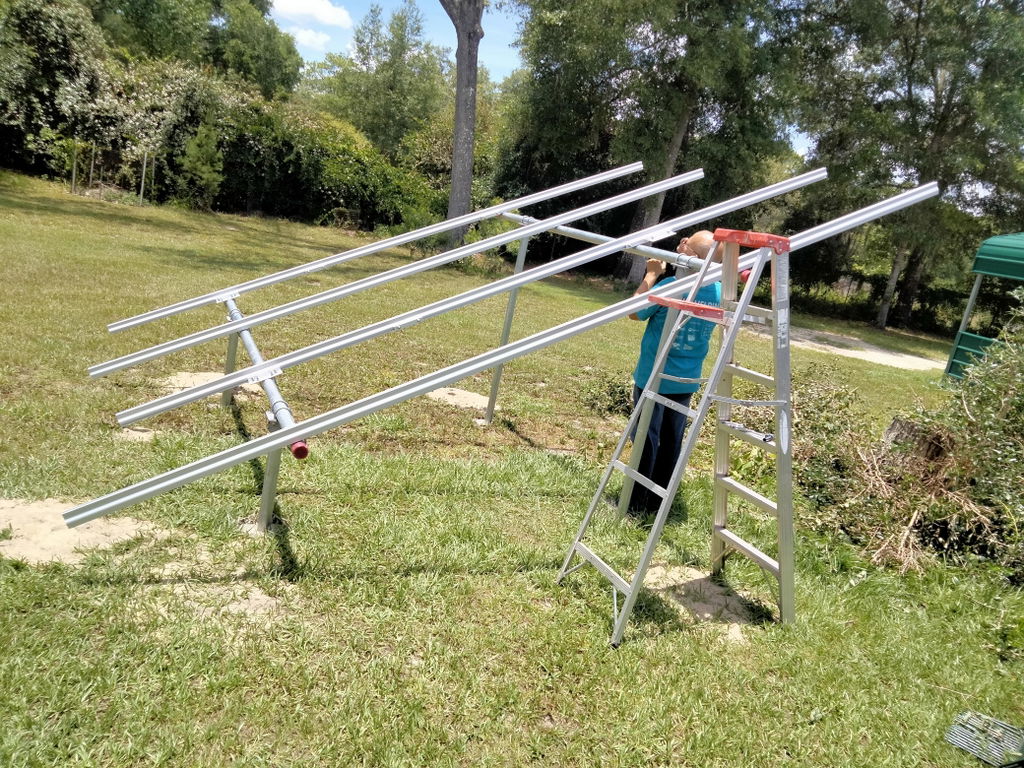

Finally there is an affordable and easy-to-install mounting systems for larger panels and arrays at fixed angles. The new Scalable Solar Panel Ground Mounting by RPS is the quickest way to plan for mounting a large array. These Ground Mounts are built using the tried-and-true post & beam substructure, bridged by our popular RPS rails and solar panel fastening hardware - the gold standard with our Top-of-Pole Mounting systems.

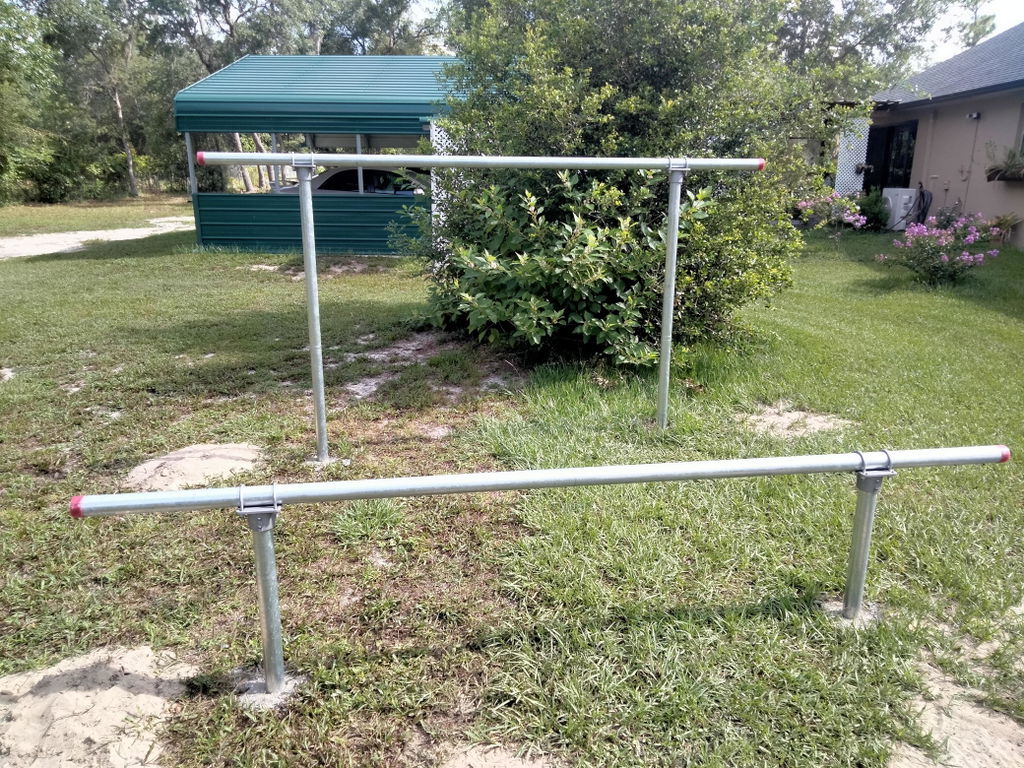

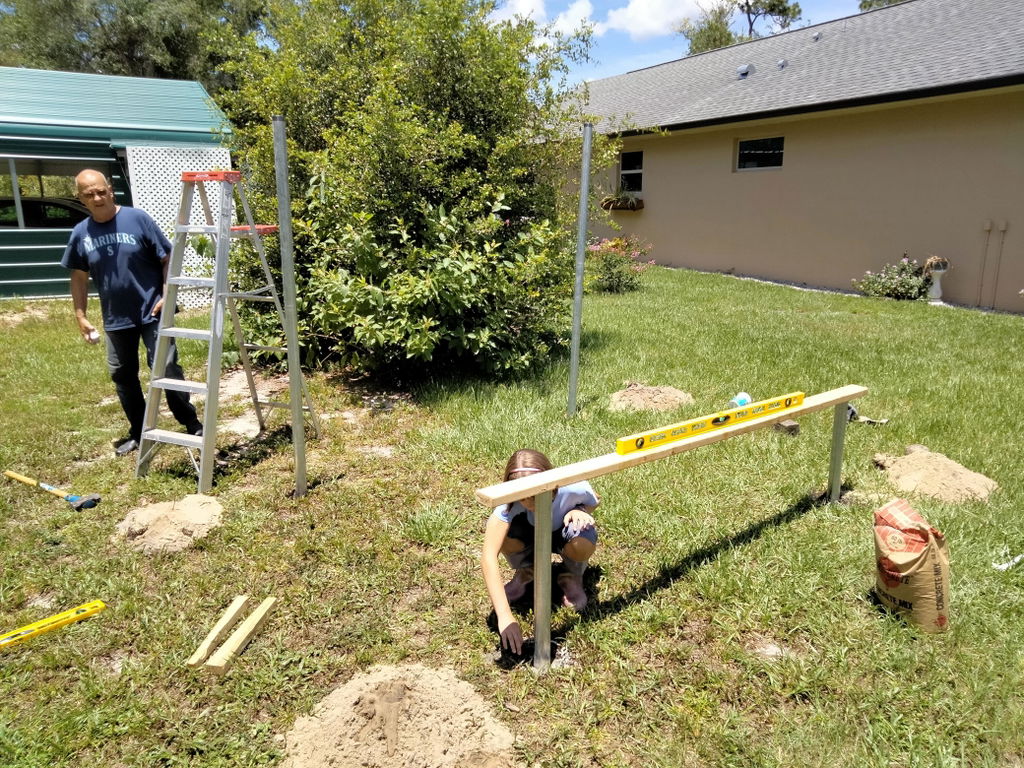

For installation, all you need to bring are a few tools, some "2in steel pipe" (2-3/8in OD) and a few bags of cement for the post holes. (and your RPS solar pump kit of course!)

Check out the Scalable Ground Mounting Manual

Note: When sizing for your system, the HR4's are compatible with large 200W-400W solar panels.  HR8's are intended for 100W solar panel (<22in in width).

VC1-HR4 VC1-HR8 VC2-HR4 VC2-HR8 VC3-HR4 VC3-HR8
Vertical Columns 1 1 2 2 3 3
Horizontal Rows 4 8 4 8 4 8
Number of Solar Panels 4 8 8 16 12 24
Common Panel Size 310
100 310
100 310
100
Common Array Wattage 1240
800 1860
1600 3720 2400
Total Array Width (ft) 5 5 10 10 20 20
Total Array Depth (ft) 16 16 16 16 16 16
Compatible RPS Model RPS Pro Series 1000 (large panels) RPS 600, 800, 800V, Pro 500, RPS Tankless Pressure TP-750-8 RPS Pro Series 1500, 2000 RPS Tankless Pressure TP-750-10, WaterSecure 1200, 1600, Pro Series 750 RPS Pro Series 2000, 3000 WaterSecure WS-6K-2400

VC = Vertical Column, HR = Horizontal Row

 For RPS Pro 3000, 3hp and 5hp Arrays:

VC4-HR4 VC4-HR8 VC5-HR4 VC5-HR8 VC6-HR4 VC6-HR8
Vertical Columns 4 4 5 5 6 6
Horizontal Rows 4 8 4 8 4 8
Number of Solar Panels 16 32 20 40 24 48
Common Panel Size 310
100 310
100 310
100
Common Array Wattage 4240 3200 5300 4000 6360 4800
Total Array Width (ft) 20 20 30 30 30 30
Total Array Depth (ft) 16 16 16 16 16 16
Compatible RPS Models RPS Pro Series 3000, Irrigation & Dewatering RPS Pro Series 3000 RPS LakeMaker XL 5HP








*customer supplied "2in steel pipe" (2-3/8 OD steel pipe)

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Terry

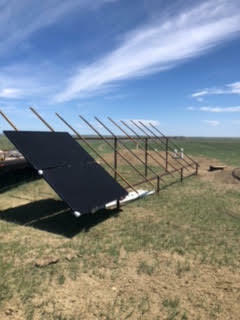

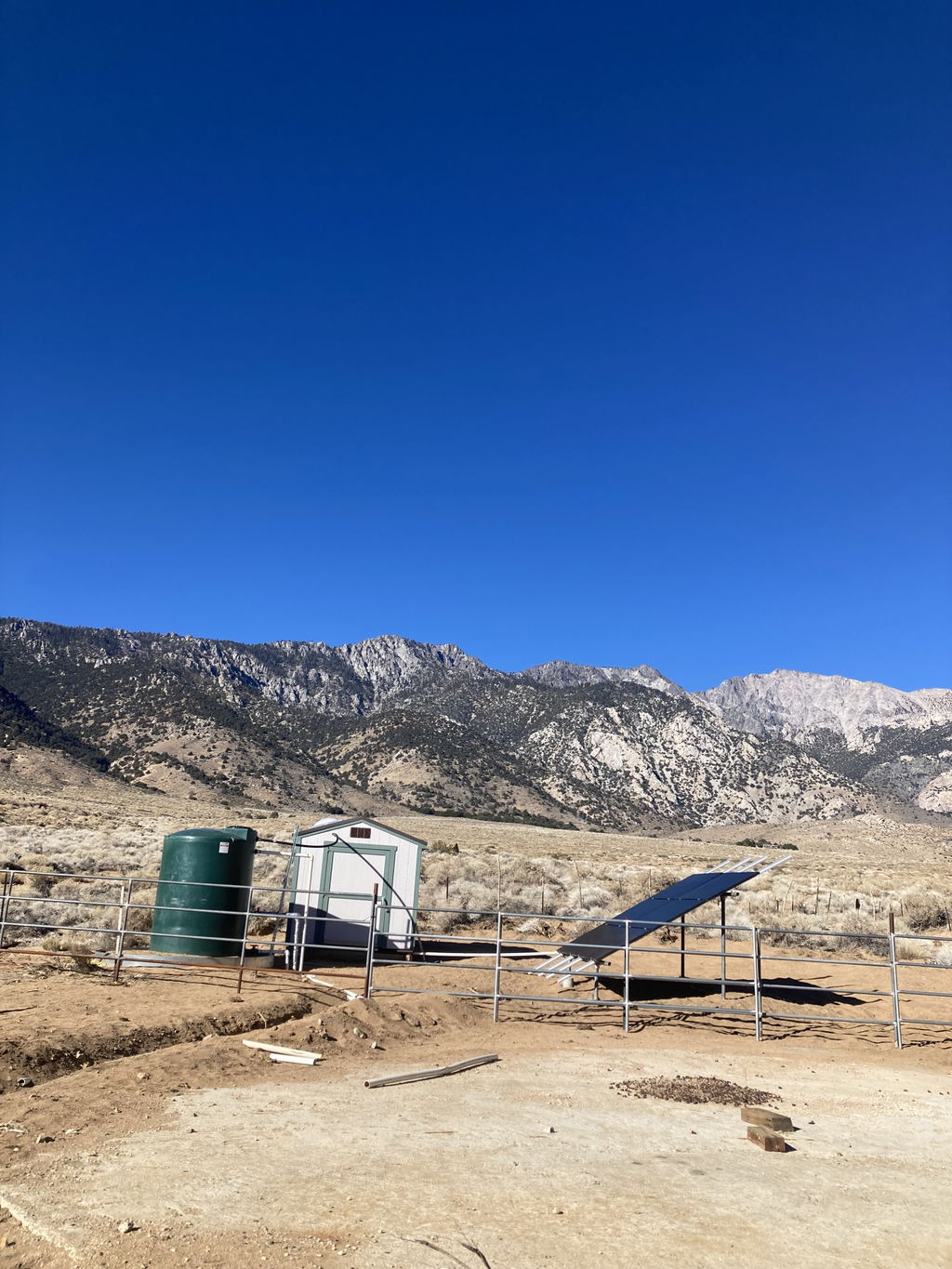

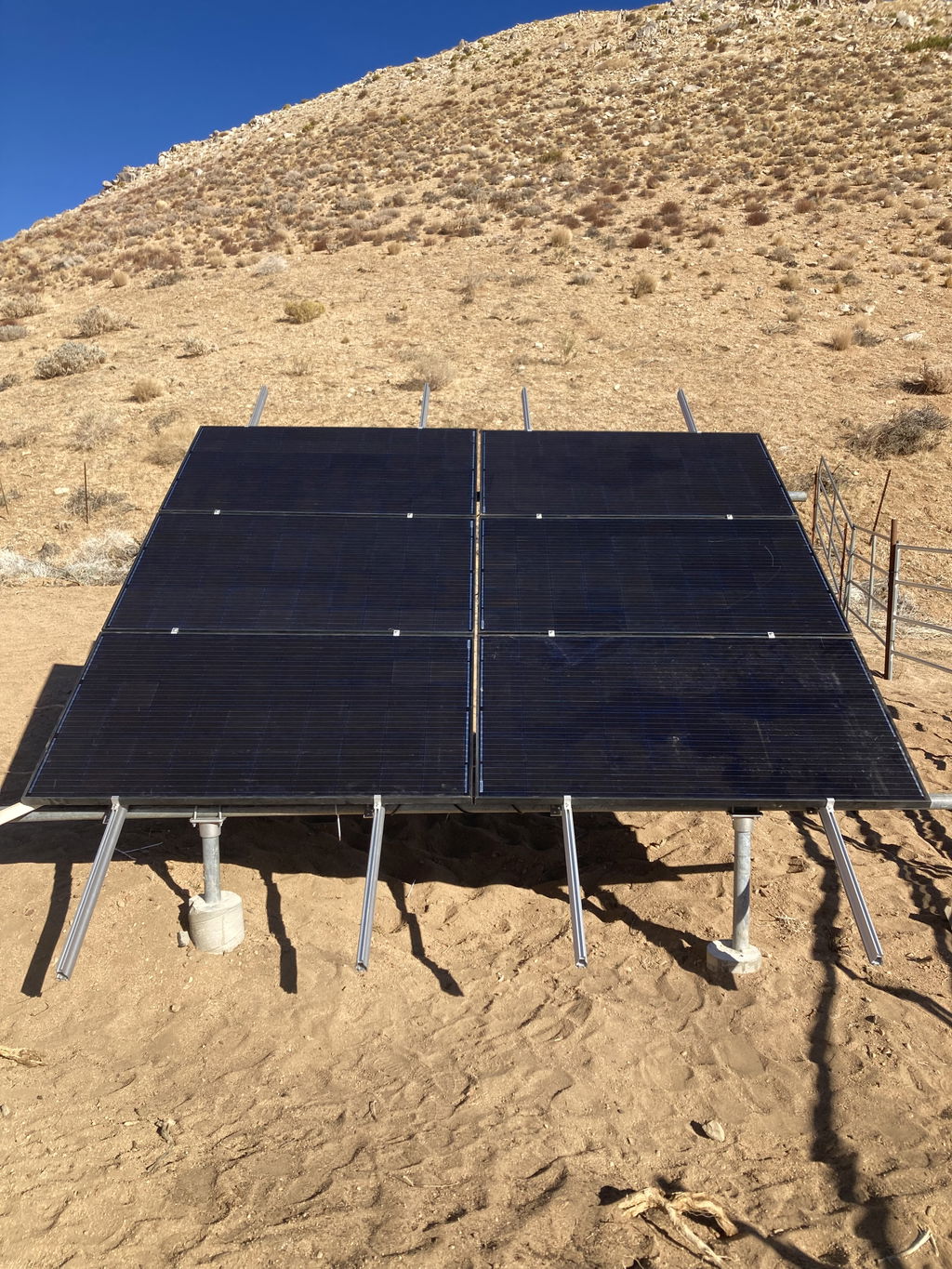

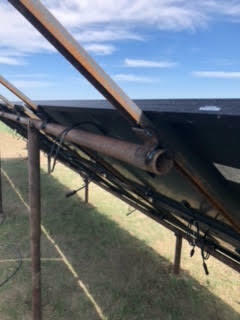

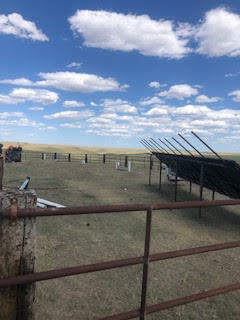

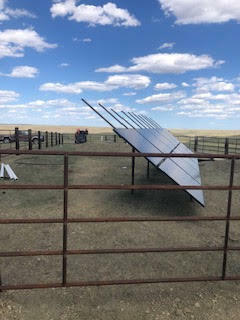

Here are some pictures of my pro system and 800v system. The 800v works all the time, even on cloudy days. With the two working together the pond is starting to fill up.

g
green harold
cost

I'm interested in setting up your expandable rack but I couldn't understand your pricing per rack. Does the 16 large panel unit come as one set for a certain cost or do you have to buy four of the four panel units? I was also wanting to know the shipping cost to 77328 cleveland tx.

W
William, ME
User Manual

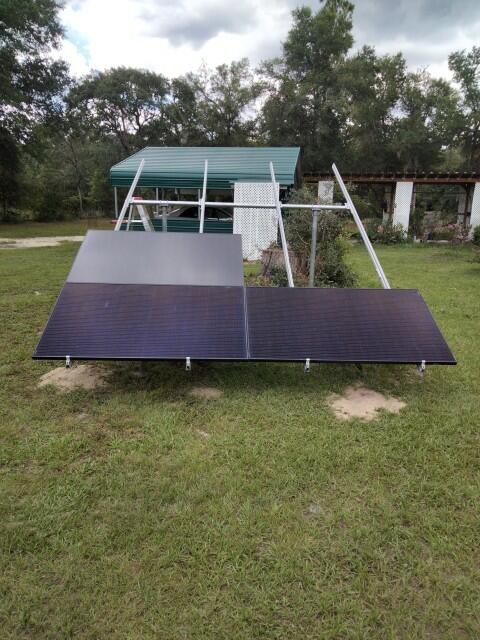

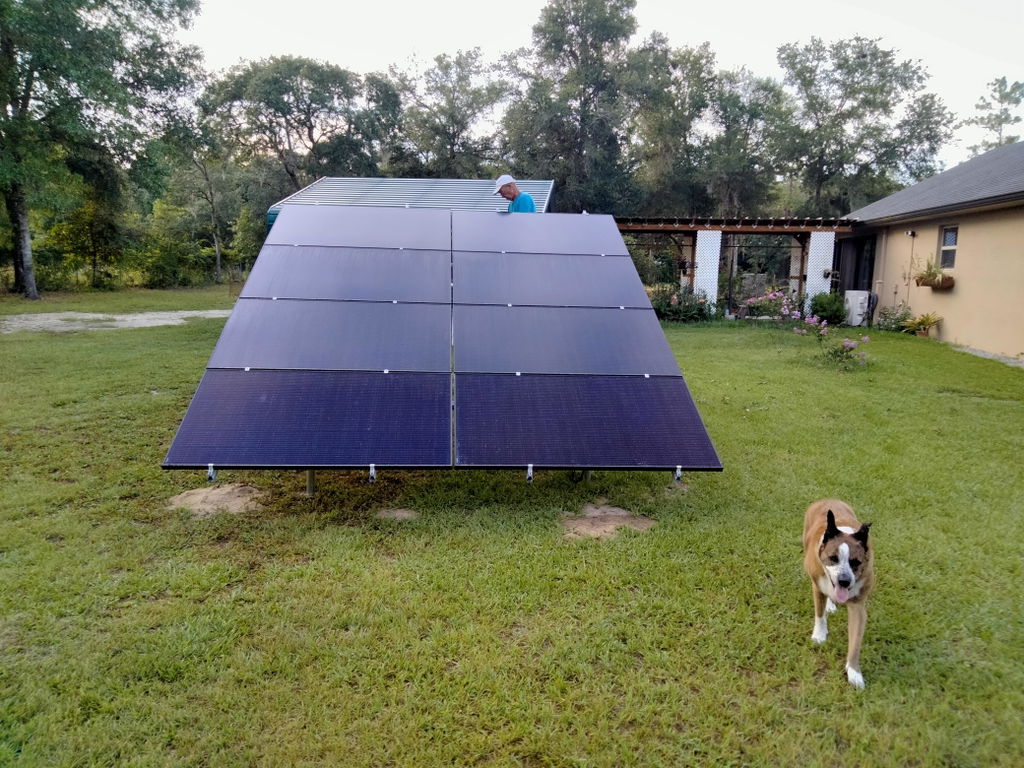

Nice mount but didn't have the user manual in the box. They sent it to me same day and the guys got it up and working the next morning. Be sure to use quick-crete so you can start adding the panels on top right away. Pretty smooth install. Had extra 2 feet of pipe at both ends which was perfect. Thanks to the guys. I'll add a photo shortly.
