RPS Solar Pumps - WS

WaterSecure™ 3K Solar Backup for Well Pumps

WaterSecure™ 3K Solar Backup for Well Pumps

Regular price $3,999.00
Regular price $5,299.00 Sale price $3,999.00
$1,300 Savings + Free Shipping until 9/30
Sale Sold out
Shipping calculated at checkout.

We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS.

Rather a Friendly Voice? Our famous support team is here to help!

Call us at 888-637-4493

View full details


*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.*

Water Security when the grid goes down! Finally, Solar charged battery backup for existing grid-tied well pumps. The WaterSecure™ system allows for the running of a new or previously installed 110v or 220v Single Phase on a solar charged battery bank, delivering up to 3,000 watts of pure sine power for a 1/2HP pump. Plus, power household appliances like internet routers, coffee makers, lights, TV's, home health equipment, fans, fridges*, freezers*, laundry machines* and AC units*. Yes! It's finally possible!

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

All WaterSecure™ kits contain:

  • RPS 100W Rugged Aluminum Framed Mono-Crystalline Solar Panels
  • Solar Wires (2 x 50ft)
  • DC Cut-off Switch
  • 3,000W Inverter/Charger
  • Plug+Wiring for AC or 220V Generator backup (3 feet)
  • Battery Wiring and Jumpers (2.5 feet)
  • Deep Cycle 12V GEL Batteries
  • NEMA L14-30 Plug for quick install
  • Breaker/Fuse
  • Detailed Full-Color Installation Manual
  • 2 Year Comprehensive Warranty
  • Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
  • Phone/Email/Text Support from Friendly USA based RPS engineers

       System is near universal with any traditional AC well pump motor, but let our engineers know if you have a question on compatibility.  No pump?  It will also work as an AC power system for off-grid home or cabin. Solar panel mounting is not included, visit our Pole Mounting or Scalable Ground Mounting pages for more info on mounting your solar panels.

      *6K and 12K Only

      Component Dimensions:

      Solar Panels: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each
      Well Pump: Model Dependent
      Controller: 19" x 14" x 8" ~62lbs


      WaterSecure Technical Brochure 📄
      WaterSecure™ 3K Solar Backup for Well Pumps SPEC SHEET 📄
      Complete Guide to WaterSecure™ 📄

      Download the Complete Guide to Watersecure


      For sizing we generally like to know...

      1. Current Pump voltage and horsepower
      2. Gallons of water per day your family uses (usually 50-100 gallons/day per person)

      Gallons Per Day (GPD)

       HP of Pump*

      WS-3K-1200 WS-3K-1800 WS-6K-800
      1/2 HP 1060
      2120 4133 2120

      3/4 HP
      n/a 1413
      1 HP n/a
      n/a 1060

      Need Larger? Go WS-6K

      3.0 HP And Higher?
      See Fully Built Out Solar Trailer with Generator

      * GPD Calculated using an average of 6GPM for each pump size

      Solar Panels Included

      WS-3K-1200 WS-3K-1800
      6 12 18


      Batteries Included

      WS 3K-600
      WS 3K-1200 WS 3K-1800
      4x 55Ah 8x 55Ah
      4x 160Ah AGM


      ⭐⭐⭐⭐⭐ Reviews - America's #1 Most Popular!

      Customers send in hundreds of notes each season expressing their newfound love for solar pumping.  Our job is not done until you are pumping water, and our support of you as you do it is unconditional. We love solar pumping and you will too.


      All your videos are spot on. If people took the time to watch them before installing they’d never have to call you. I loved the user manual. The way my wife follows her recipe for cooking… that’s how I followed your user manual. I loved it. Every second of it. I’ve never had customer service like this.

      - David, TX


      RPS is now one of my very favorite companies.With the help of Daniel, I purchased a 6000watt Water Secure System. It was a great project to install and brought me back to using some skills that I haven’t used in years. It worked perfectly as soon as I turned it on.

      - Susan, OK


      We’re getting close to what, roughly five years but it’s working fine still.It’s been the best investment we’ve ever done, sir.Seriously. Oh yeah, the best thing we’ve done. We don’t have to run a generator, we’ve got plenty water, it’s always full, it always works and we can almost turn back on it.

      - Rodney, OR


      Solar Pumping FAQ

      How can I be sure I have the correct size solar pump?
      The online Pump Sizing Wizard starts with over 100 RPS Solar Pump models and using the variables you enter about your well depth, latitude and your water needs to size your system correctly the first time. Or if you prefer talking with a friendly specialist, give us a call at 888-637-4493

      How long does it take to install?
      Most people find it can be easily done over a weekend and our record is a customer who installed their RPS200 system in 1 hour and 7 minutes! It's as easy as mounting your solar panels, dropping the pump down the well, and flipping the switch!

      What resources are there to help me install?
      Countless features and included parts and pieces make the install of an RPS pump easier than ever - for first timers and old timers alike. Our 64 page all-color user manual outlines the entire process, YouTube videos demonstrate it visually and the “DIY Success Center” (100+ articles and videos FREE access with purchase!) is available anytime, and our engineers are ready to help over email, phone or text.

      How is shipping cost calculated?
      Shipping is currently FREE with the current sale but the sale expires at the end of the month.

      How does it ship? Timeframe to expect?
      We make every attempt to ship the same day the order is received. Sometimes, this is not possible due to popularity, and the items will ship the following day or days. Many of our systems include bulky solar panels. Shipping times and delivery dates are estimates only as these services don’t offer guarantees, but often between 2 and 5 days transit for boxed systems depending on your area in the US.

      In a hurry? Most systems can be expedited 2nd Day Air, we just need to know in advance and we just ask you cover the difference in cost between Ground shipping and 2nd Day Air. Freight deliveries like WaterSecures and larger Pro Series with Large Panels we use pallets and FedEx Freight. Shipping times are a little harder to estimate here. Packing and palletizing may take 1-2 days based on the season. You will be sent a tracking number once your order is scanned and in transit! ** RPS Ship-Insured™ guarantees you get what you ordered in working condition and combines with the 100% Water Assurance Guarantee to add additional peace of mind that your investment will result in water pumping!

      Can I supplement the sun with power from batteries or AC/Generator?
      Absolutely. But neither is necessary. Batteries allow for the storage of solar power during the day to be used at night or on cloudy days. AC/Generator converters mimic the power the sun might provide on a perfectly sunny day with AC whenever you have it. There is also an AutoSwitcher box that automatically switches between AC and Solar, weather depending.

      How much area do I need for the solar panels?
      Rough dimensions of solar panels and array sizes can be found below.

      How big are the Solar Panels? How many?
      We size with versatile, rugged and easy-to-install 100w panels. Take the kit name (RPS 200) and divide by 100 watts for the number of panels in the kit. RPS200 = 2 100w Solar Panels. RPS800V = 8x 100w Solar Panels. Once over 1.5HP Pro Kits, large 300+ watt panels are used. Small and Large panels still have roughly the same total dimensions and surface area per watt. Smaller panels are just easier to work with, transport, and create building blocks that are easier to upgrade in the future.

      What is the best way to mount the solar panels?
      Mounting is easy. Panels are rigid aluminum framed so can be fastened down in a number of ways. Tilting south and adjusting to your latitude is most important vs material or construction of mounting. There are our adjustable pre-made options, and hundreds of photos of do-it-yourself mounting here.




      Ground Mount
      Panel Orientation
      2x1 - Two 100w Solar Panels in Landscape (long side horizontal) in Single Column of Two
      Panel Orientation
      4x1 - Four 100w Solar Panels in Landscape (long side horizontal) in Single Column of Four
      Panel Orientation
      4x2 - Eight 100w Solar Panels in Landscape (long side horizontal) in Two Columns of Four
      Panel Orientation
      4x1 - Four 375w Solar Panels in Landscape (long side horizontal) to a Column. Add Columns as needed.

      Or 8x1 with 100w Solar Panels in Landscape (long side horizontal)
      Array Dimensions
      39” Wide (38L)
      45” Tall

      Roughly3 ½ feet wide by 4 feet tall
      Array Dimensions
      39” Wide (38L)
      90” Tall

      Roughly 3 ½ feet wide by 7 ½ feet tall
      Array Dimensions
      78” Wide (38L)
      90” Tall

      Roughly 6 ½ feet wide by 7 ½ feet tall
      Array Dimensions
      5’ Wide Per Column of Panels (While Facing)
      16’ Deep

      Ground Mounts (GM) are recommended when more than 1600 watts are needed
      + Add to Cart
      2 Panel Top of Pole Mount
      +Add to Cart
      4 Panel Top of Pole Mount
      +Add to Cart
      8 Panel Top of Pole Mount
      +Add to Cart
      Scalable Ground Mount

      Wait, so no batteries needed?!

      Some customers just can’t believe that these pumps will work on solar power alone. They are even more delighted when they get water - and usually more than they think with only the sun! It feels like magic! Film a video of a loved one when you first turn the system on - the expressions of awe are priceless!

      RPS systems run incredibly efficiently using solar power alone. No batteries needed. While it does make sense for some customers to add a battery bank (especially with low GPM wells and for household water pressure), whenever possible, our engineers do recommend pumping more water into a storage tank for overnight use. We have more info on batteries here. Most customers start without batteries regardless, as they are easy to add in the future if desired.

      Can I add more Gallons Per Day in the future with more panels?
      Yes! Systems are generally very modular and you can see what “Water Upgrade Kit” (solar panels and wiring) is compatible with your system and can easily be added later. Add a compatible battery bank with more solar panels to unlock nighttime operation!

      I don’t need that much GPM, can I turn the rate of pumping down?
      Lower production wells might produce less than a gallon a minute and one of the great features of RPS pumps is that the controller’s speed dial allows you to reduce the motor speed, pumping at a slower rate to match the replenishment rate of the well or water source.

      What does Water Assurance Guarantee mean?
      We offer a money back guarantee that our pump systems will provide you water off of solar power when sized by one of our engineers to your well, desired setup and final total dynamic pumping head. We do require static water levels, drawdown and pressure requirements are accurately estimated during the sizing process, that installation follows the instructions of the RPS User Manual, and that you give RPS engineers a chance to troubleshoot any issues.

      Lifetime Rotor Replacement Guarantee
      Our brushless motors are designed to last for tens of years without maintenance. These motors (at the bottom of the pump) turn a stainless steel helical rotor inside a rubber-lined stator. Helical rotors are incredible for utilizing low power, so it makes them perfect for solar use. But these rotors are inherently the weakest point of the entire system, just like all helical pumps, especially in sand or iron-rich soil. With RPS you won’t ever have to mail your pump off to get a factory rebuild. Replace the rotor yourself on site and save time and money. No need to cut wires either, just open up the upper pump end and swap in a new rotor and your pump will operate as it did the day you installed it. Our Replacement Guarantee Policy means that we will replace these rotors whenever they wear for the lifetime of your pump’s motor. The rest of the system is convered under the 2 Year Comprehensive Warranty and Lifetime Phone Support.

      Why choose RPS?
      We're America's #1 Most Trusted Solar-Powered Water Pump!
      RPS Solar Pump Kits are for people that believe in getting the job done themselves, and getting it done right. Our goal is to arm you with the equipment and knowledge to take control of your water and save a fistful of money doing it.

      What’s the submersion limit on the 2" and 3" submersible pumps?
      The submersion limit is also different than the “total head ability” of each pump. Most people place their solar pump 20-50 feet below the water surface, as compared to a typical AC pump which installs 10 feet off the bottom of the well, but anywhere within 0 and 129 feet is acceptable. RPS specialists will help size a solar pump that best matches your well's production rate.

      Still not sure which size solar pump?
      We have built the industry’s best Pump Sizing Guide which is online for convenience. Once you add details about your well and water use, it will recommend a pump. If you’d like, we’ll also have an engineer call you and make sure we have the right size selected.  888-637-4493


      Still not sure? Call one of our RPS Sizing Specialists at 888-637-4493 or click the button below to use our Pump Sizing Wizard!

      Customer Reviews

      Based on 10 reviews
      Working great!

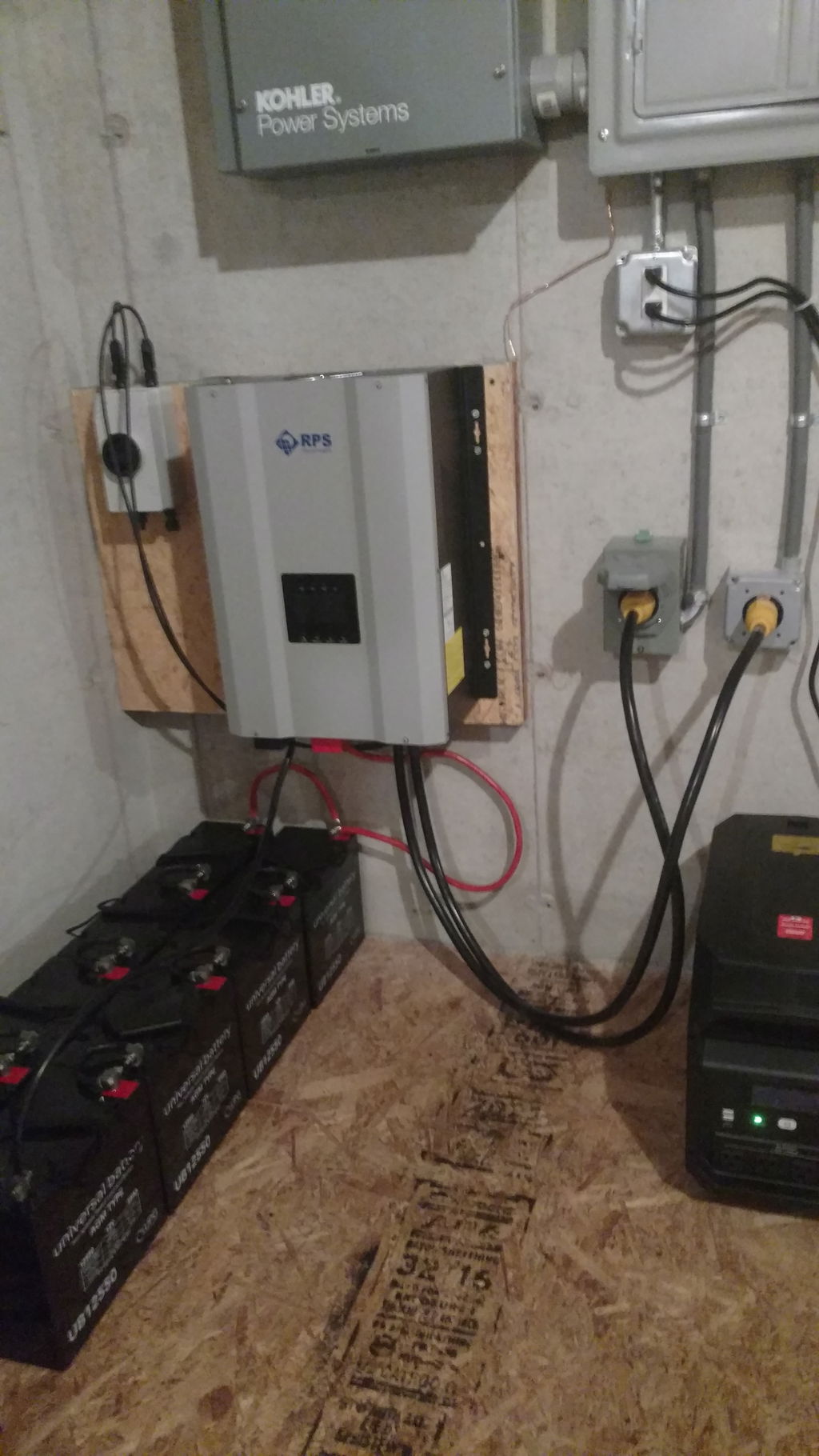

      This is a shot of the RPS well pump inverter hook up in our home basement. Andrew was a terrific help with the battery pack layout! You’ll note that the inverter is mounted just under our 16KW Kohler generator panel. The generator runs on natural gas. If the grid goes COMPLETELY down, and the gas stops flowing, I’ll hook the solar panels and fire up the inverter to supply us with 240V well pump water to get us by. I’ll revisit the videos on 110V plug attachments to use smaller appliances. Thanks for all your help!


      please could you be kind enough to provide your email address, so we can communicate with you regarding our needs please

      Steve Silveria
      Good system need to have a 3R version

      I installed the 3K-1200 system a few weeks back and have to say it was extremely simple and worked great right from the go. The only thing I would say is if you are in a very remote part of a property you will have to build or purchase an enclosure because the controller is not weather proof and also you need an enclosure for the batteries.

      Warren McCOy
      Setup and ROCKING!

      LOVE THIS SYSTEM. Easy to setup and works great, running a 160ft 3/4 hp deep well pump with 3 100w solar panels and 4 deep cycle batteries.

      The setup is simple only had 1 question , but got an answer in minues on the phone. I plan on adding 3 more Solar panels to make it bullet proof. but for a 3/4 pump and 4 batteries its very efficient and I know I will see savings during the Summer months for sure, with all the watering we do! Now during power outages I don't have to scream not to Flush the TOILETS!!

      Shibi Chandran
      Wanted to have your email address, need further information about the solar pumps

      Its looks great and i am sure should be working well, thanks
