RPS Pro Series V - High Volume Solar Pump Kits (Under 300ft)
RPS Solar Pumps
Regular price
$4,599.00
$3,599.00
Sale
Our Pro Series V pumps are designed for high volume, low head (under 300ft) applications. They can be self-installed or using a local installer. More than 300ft head? Pro Series D – Deep Solar Well Pumps
Our Pro Series V systems use hearty USA 3-Phase Motors and 3.9″ Pump Ends. Our controllers are the best in the world and allow customization and optimization based on sun and season. While the four systems outline below are our most popular sizes, we regularly help design systems with pumps up to 6″ and 7.5 HP for larger projects. More info on Larger Systems up to 200GPM here.
Gallons Per Day (GPD)
| RPS800V |
Pro 500V | Pro 1000V | Pro Lakemaker XL 3hp | Pro Lakemaker XL 5hp | |
| 3" Pump, Direct Drive Solar or Generator | Direct Drive Solar or Generator | Direct Drive Solar or Generator | |||
| 50ft Head | 5,100 | 7,500 | 11,800 | 30,000 | 63,000 |
| 100ft Head | 4,600 | 5,400 | 9,700 | 20,000 | 20,880 |
|
150ft Head |
3,000 | 1,400 | 7,500 | Custom | Custom |
| More than 150ft | - | - | Custom | Custom | Custom |
* Gallons Per Day calculated using average of 6 hours/day solar. For Direct Drive Solar systems divide GPD by 360 to get GPM.
Systems Include:
- Brushless Submersible Motor (3 Phase 220v, 3.9” Diameter)
- 2.2 kW Rated Solar Controller (takes DC Voltage from Solar Panel array +Auto-Switch to run with 220v Grid or Generator when not enough solar)
- Large Float Switch for use as high water tank sensor
- Stainless Steel Pump End (sized to your well and water needs)
- Solar Array in Mono/Poly Aluminum-framed UL Solar Panels
- All connector cables from solar panels to controller
- DC cut-off disconnect switch rated for your array, plug and play with MC4s
- Simplified Wiring Diagrams for easy hookup
- Consulting re: Mounting solar array with Schedule 40 pipe at Fixed Angle (similar)
- Phone & Email support before and during installation
|
Solar Panels: Roughly 3.5' long, 2' wide, 1" thick. ~17lbs (100W) OR 5.5' long, 3.5' wide, 1.5'' thick. ~ 41lbs (315W panels) Well Pump: 3.9" OD, 1.25" Outlet (Up to 2'') ~30lbs Controller: 16” x 16” x 4”, ~22lbs |
We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS. Note from RPS co-owner Mike.
Rather a Friendly voice? Our famous support team is here to help!
888-637-4493
*Note: Free shipping unfortunately only available for contiguous 48 states. Subsidized shipping available for Hawaii, Alaska, Mexico and Canada!
Rather a Friendly voice? Our famous support team is here to help!
888-637-4493
Customer Reviews
We had several dry years when the ponds dried up; the the one in front of the house was the worst, it dried up into cracked hard mud. Here's the whole pond. The well is @200 ft uphill, and water flows downhill thru pipe to our "Redneck Fountain" where it is aerated before splashing into the pond. Here's a closer look at our "Redneck Fountain" in action. On calm sunny days we can hear the water splashing when the pump's working. We are so glad that we have a solar powered pump from RPS to help us keep it full. The pond is home to lots of frogs and tadpoles, some perch, sunfish, and a few turtles; and if you look closely at the middle of this picture you can see one of the other residents hunting for frogs....... We also use pumped water to irrigate the garden and fruit trees. RPS customer service and support have been super; can't thank you enough for your advice and quick shipping of the new controller. RPS rocks!
Here's a bonus picture of that other resident. Water snake, non venomous, but I got the scare of my life when it struck at a frog that hopped in my direction! LOL. Thanks Again!
Thank you so much. It is really nice dealing with you ,not only people in the USA, but live is even better.

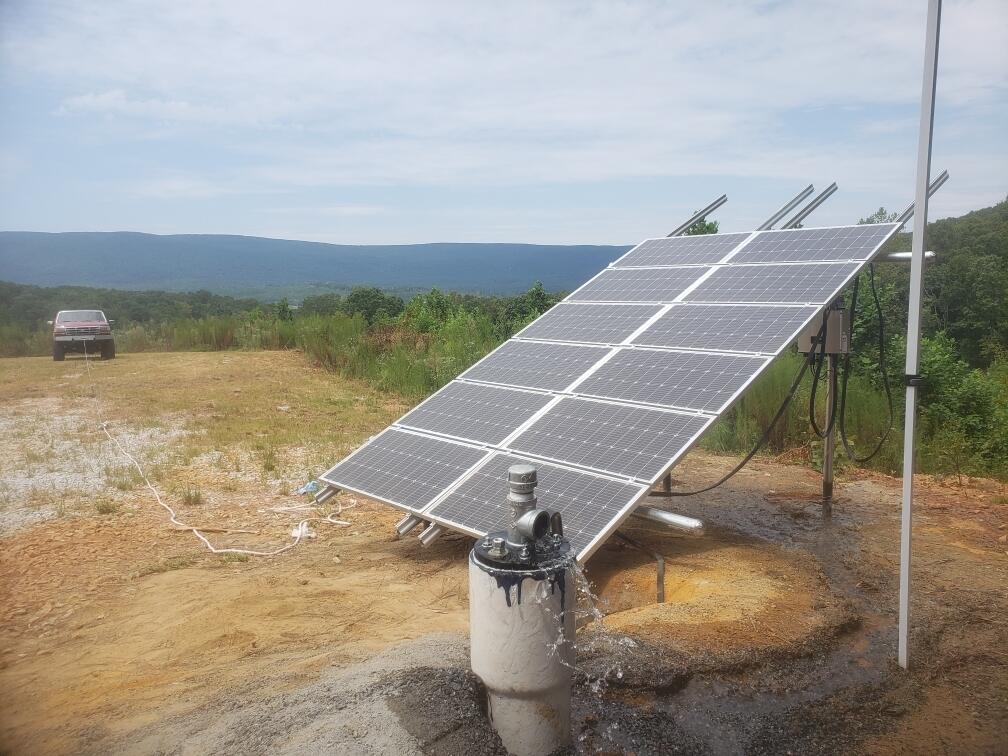

It's shoooooting into the tank! It's *#$@-ing beautiful!
