RPS Solar Pumps

Regular price $2,149.00 $1,599.00 Sale

SALE + FREE SHIPPING!*

America's #1 Most Trusted Solar-Powered Water Pump
RPS Solar Pump Kits are for people that believe in getting the job done themselves, and getting it done right. Our goal is to arm you with the equipment and knowledge to take control of your water and save a fistful of money doing it. Our Pledges to You


Put the Sun to Work
on your land with the famous RPS 200. Over the years has been installed by more farmers and ranchers than any other system we offer, scattered over all 50 states. Two solar panels offer an attractive blend of performance and price giving you up to 1800 gallons a day, and over 500 gallons at 150ft. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options. Spec Sheet.

Find out more about all the ways you can use a submersible pump on our install diagram page or take a look at our RPS 200 customer story


Gallons to Expect from RPS 200
* Based on a 6 hour solar pumping day

Gallons Per Day GPM
No head 1836 5.1
25 ft 1692 4.7
50 ft 1584 4.4
75 ft 1188 3.3
100 ft 1116 3.1
125 ft 756 2.1
150 ft 540 1.5




Need a different model?
RPS 200, RPS 400, RPS 600, RPS 800, RPS 400V, RPS 800V, Pro V Series, Pro D Series or use the popular online
Sizing Wizard.


Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back!  Start Sizing Now »


RPS 200 Kit contains:

  • 2x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels
        (Dimensions are roughly 3.75' long, 1.6' wide and a little more than 1" thick)
  • RPS Helical Rotor Pump (2.9" OD) with DC Brushless Permanent Magnet Motor
  • RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
  • 3/4" hose barb and hose clamps for use with black poly pipe (or ask for 1" if you prefer)
  • 1x Low-water Well Level sensor with 100ft wire attached
  • 1x Tank Shut-off sensor with 100ft wire attached
  • Solar Panel cable connectors
  • Waterproof heatshrink wire splice kit with pre-crimped pump wires
  • Detailed full-color solar pump guide with step-by-step install instructions
  • Access to RPS video archives of installation tips & product walkthroughs
  • 30 Day Money-Back & 100% Water Assurance Guarantee
  • Lifetime Rotor Warranty which is only wear part and Field Serviceable
  • 2 Year Comprehensive Warranty
  • Phone / Email / Text Support from Friendly USA based RPS Engineers

Solar panel mounting is not included in the standard RPS 200 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.


Features of RPS Controllers
Multiple Sensor Inputs
Tank High & Well Low sensors
Variable Frequency Control with MPPT
Cycling Protection Timer
Exterior Shut-off Switch
Features of RPS Pumps
Slow Start/Stop for Longevity
Brushless Motor Technology
Serviceable in the Field
Stainless Steel Body
Lifetime Rotor Warranty


No batteries required! Batteries or a generator can be used later as backup with the proper hardware, but most customers find they get much more water than they expect with solar alone! That sun up there is amazing!

   Solar Panels: 47”x 20”x 1.18”, 100W / 12V, ~15lbs
Well Pump: 2.9" OD, 3/4" Outlet 21" Long, ~15lbs
Controller: 13” x 8” x 6”, ~10lbs






We feel it important to mention that our team is not on commission so expect our help, not pressure to purchase. Our job is to help get you water, not sell you something that isn't a good fit for you or your well. It's why thousands of American farms & ranches trust RPS. Note from RPS co-owner Mike

Rather a Friendly voice? Our famous support team is here to help!

888-637-4493

*Note: Free shipping unfortunately only available for contiguous 48 states.  Subsidized shipping available for Hawaii, Alaska, Mexico and Canada!







Rather a Friendly voice? Our famous support team is here to help!

888-637-4493

Customer Reviews

Based on 24 reviews Write a review

Customer Reviews

Based on 39 reviews
97%
(38)
3%
(1)
0%
(0)
0%
(0)
0%
(0)
K
Kyla

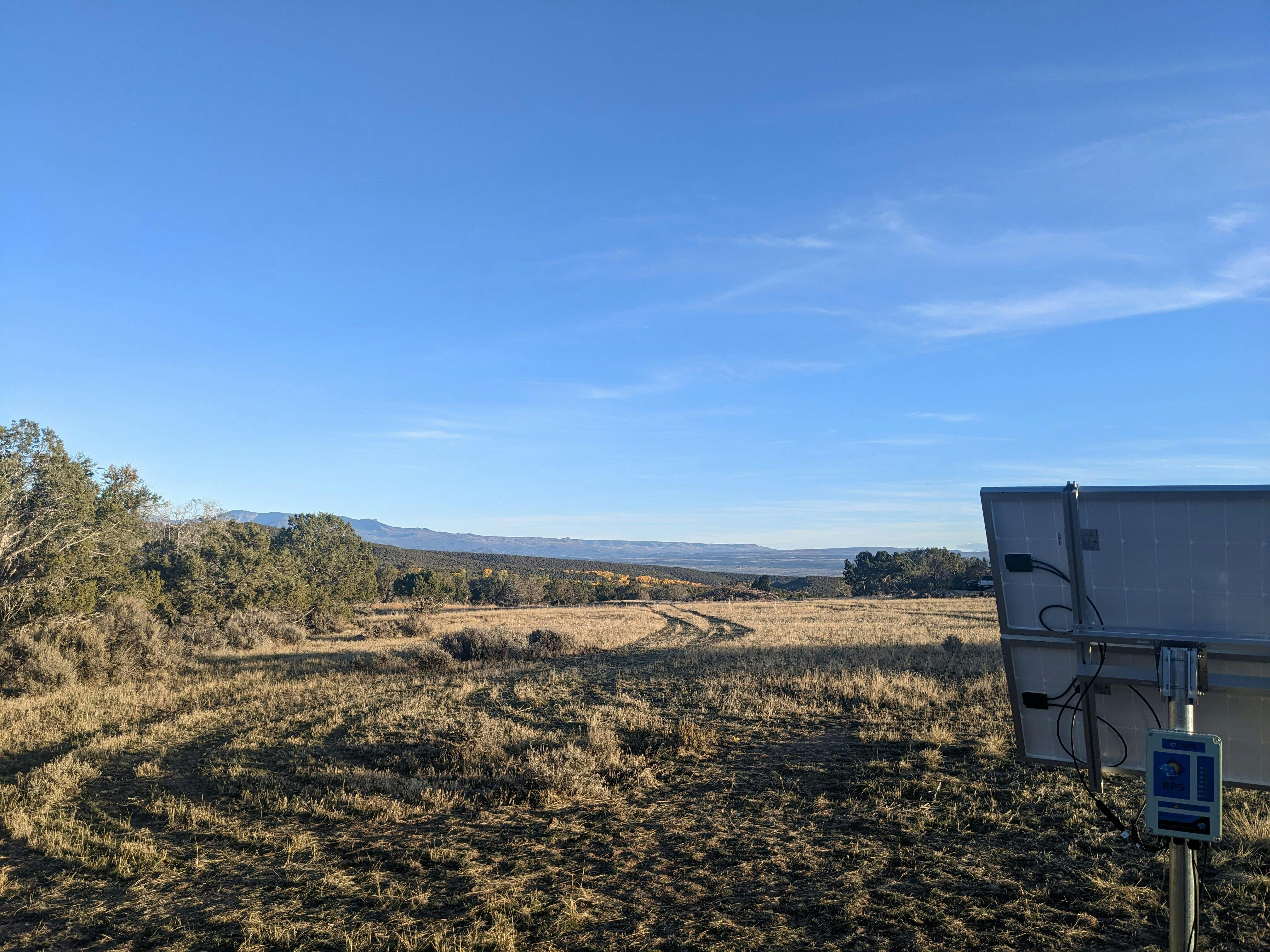

Thanks to your excellent customer support I have my system installed any pumping water effectively. Here’s my rps200 soaking up some sun by the lake

S
Steve M

Keeping cows watered with my Rps pump

S
Sam C

Irrigating garden with my new RPS200

L
Larry R
Pump did 5 gallons per minute

I cut a red cedar tree for a post and made a plywood box for the controller box (I know it is weather proof). There is a 7 foot copper ground rod by the post for the system. Oklahoma has been mostly cloudy for the last two weeks with rain. Looks like another week to go. I did get some sunshine For a short time and the pump did five gallons a minute. Thinking about putting two deep cycle batteries on unit. The pump is 30 feet in water.

B
Bob

Here is finish product with stock tank now pumping great.
Thank you!
